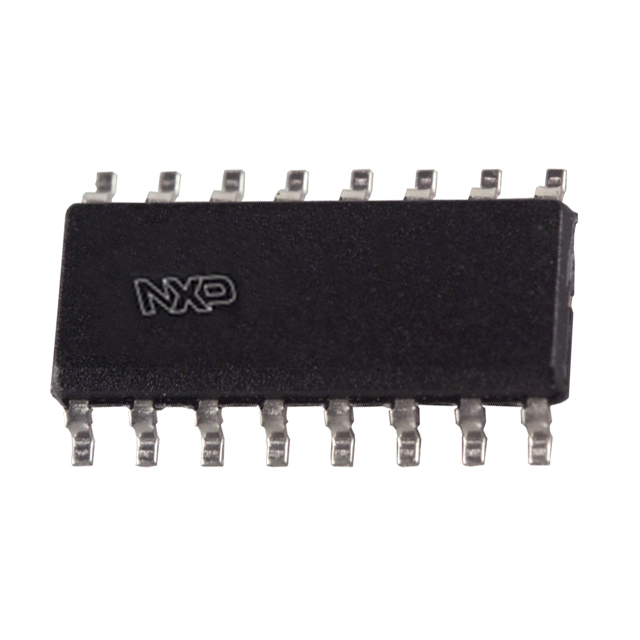

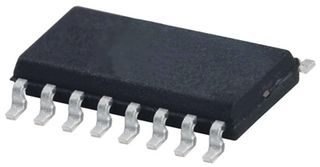

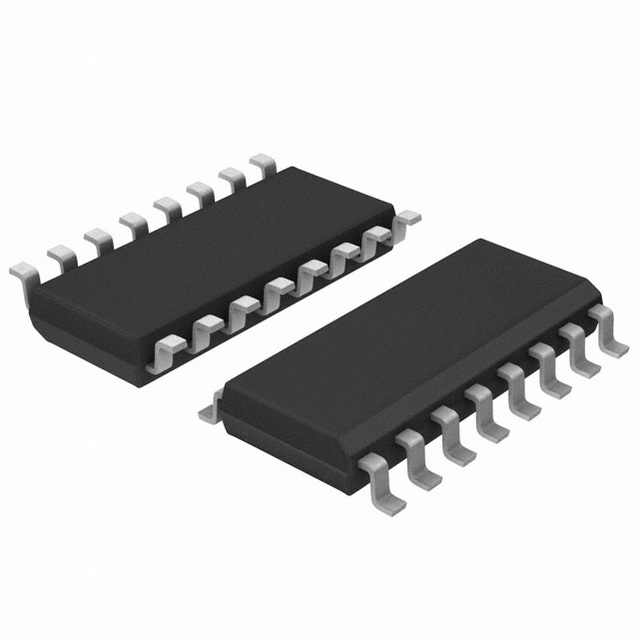

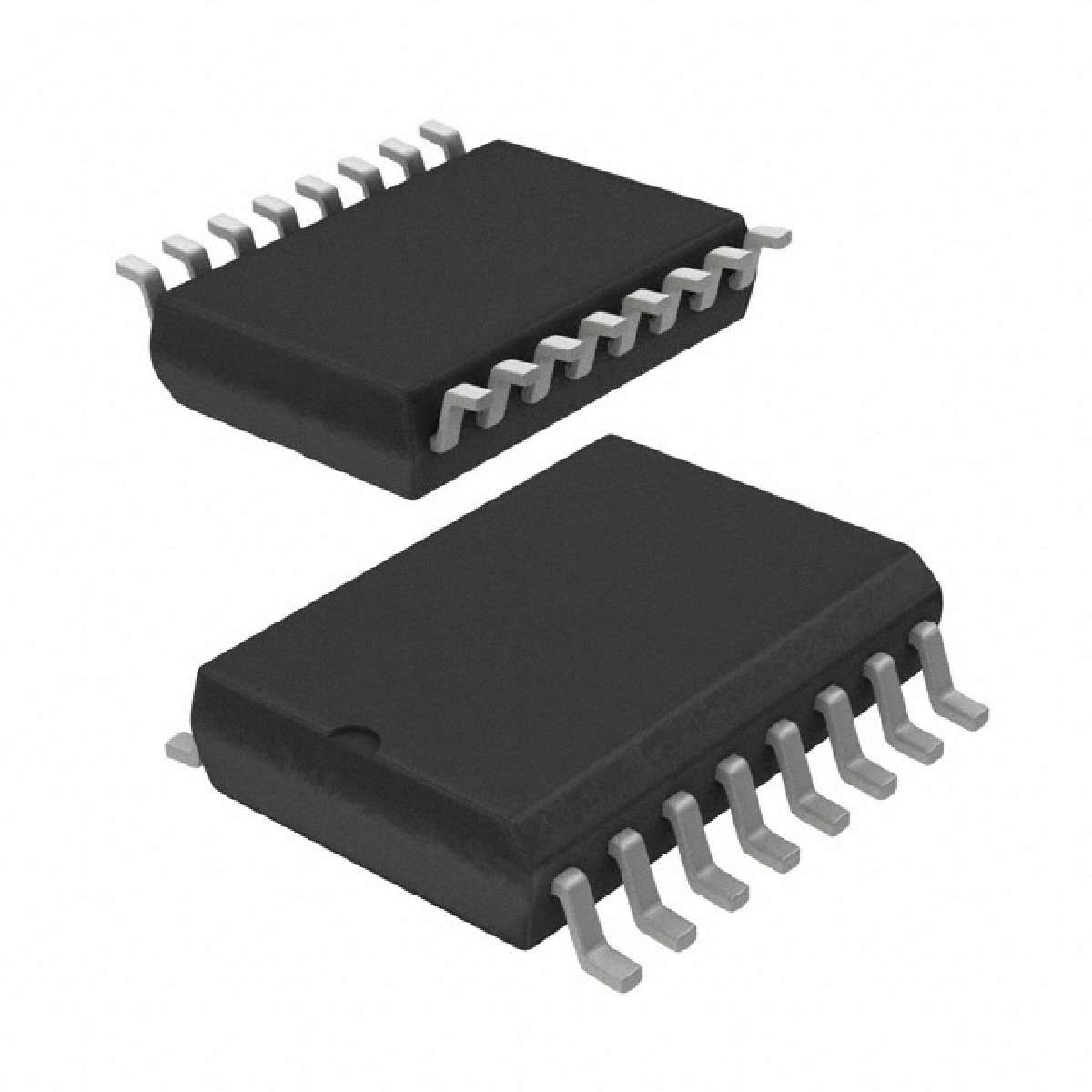

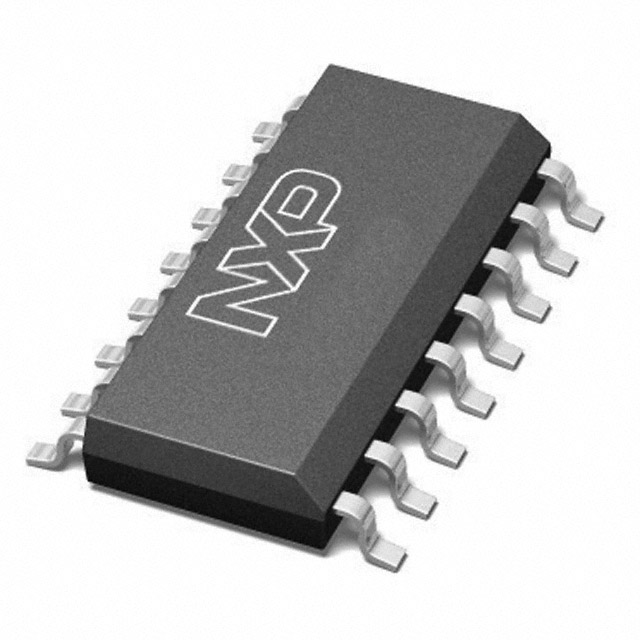

74HCT 系列 5 V 双通道 可重复触发 单稳态多谐振荡器 带复位-SOIC-16
The monostable multivibrator from Semiconductors is designed specifically to generate a short pulse in the event a chosen condition is met. This monostable multivibrator has an operating temperature range of -40 °C to 125 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
电源电压DC 4.50V min
输出电流 5.2 mA
耗散功率 500 mW
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 10 mm
宽度 4 mm
高度 1.45 mm
封装 SOIC-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
