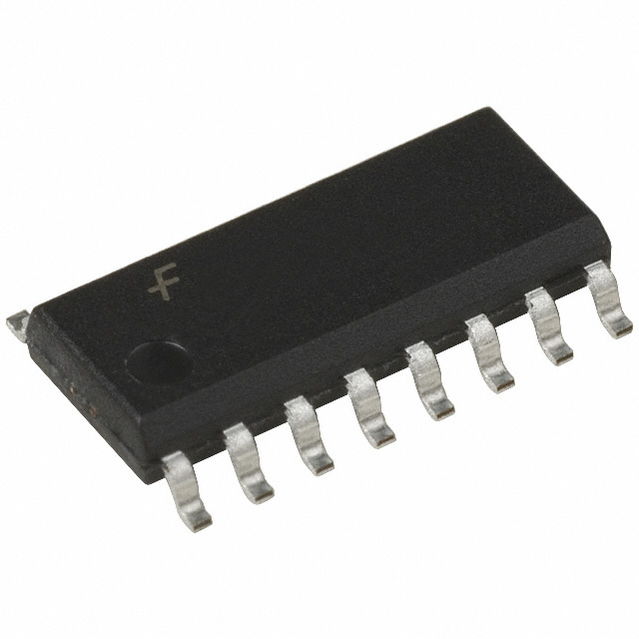

FAIRCHILD SEMICONDUCTOR 74VHC4040M. 芯片, 逻辑芯片 - 74VHC, 二进制计数器
The is an advanced high-speed CMOS Device fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. The VHC4040 is a 12-stage counter which increments on the negative edge of the input clock and all outputs are reset to a low level by applying a logical high on the reset input. An input protection circuit insures that 0 to 7V can be applied to the inputs without regard to the supply voltage. This device can be used to interface 5 to 3V systems and two supply systems such as battery backup. This circuit prevents device destruction due to mismatched supply and input voltages. This product is general usage and suitable for many different applications.
电源电压DC 2.00V min
输出接口数 12
电路数 1
针脚数 16
时钟频率 210 MHz
位数 12
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 9.9 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Rail
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
