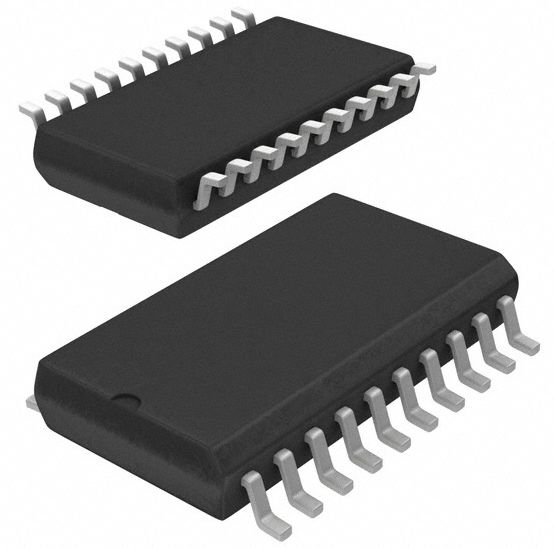

NXP 74HCT245D 收发器, 非反相, 3态, 8门, 1输入, 4.5V至5.5V, SOIC-20
The is an Octal Transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions. It features an output enable input OE for easy cascading and a send/receive input DIR for direction control. OE controls the outputs so that the buses are effectively isolated. This is a high-speed Si-gate CMOS Device and is pin compatible with low-power Schottky TTL LSTTL.
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 4.50V min
通道数 8
针脚数 20
位数 8
逻辑门个数 8
输入电容 3.50 pF
工作温度Max 125 ℃
工作温度Min -40 ℃
耗散功率Max 500 mW
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20
封装 SOIC-20
封装 SOIC-20
产品生命周期 Unknown
包装方式 Each
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
