74HC1G08GV

74HC1G/74HC2G 系列，NXP高速 CMOS 逻辑 工作电压 2.0 － 6.0 兼容性：输入 CMOS、输出 CMOS ### 74HC 系列

General description

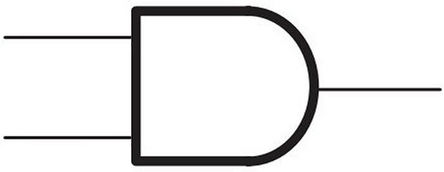

74HC1G08 and 74HCT1G08 are high-speed, Si-gate CMOS devices. They provide a 2-input AND function.

The HC device has CMOS input switching levels and supply voltage range 2 V to 6 V. The HCT device has TTL input switching levels and supply voltage range 4.5 V to 5.5 V. The standard output currents are half those of the 74HC08 and 74HCT08.

Features

■ Symmetrical output impedance

■ High noise immunity

■ Low power dissipation

■ Balanced propagation delays

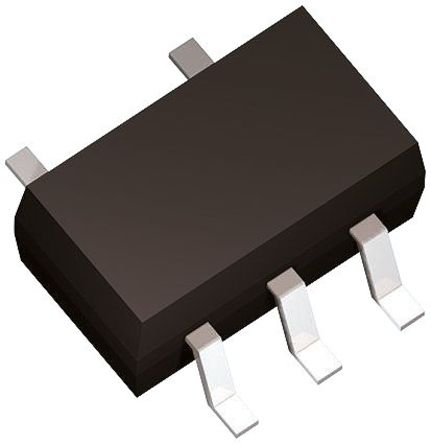

■ SOT353-1 and SOT753 package options
