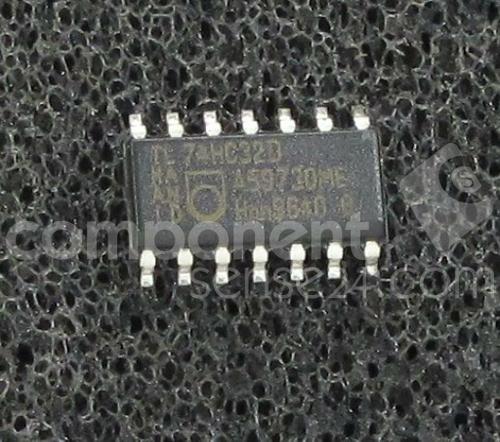

NXP 74HC32D 或门, HC系列, 4门, 2输入, 5.2 mA, 2V至6V, SOIC-14
The is a quad 2-input OR Gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Symmetrical output impedance, high noise immunity and low power dissipation.
ESD sensitive device, take proper precaution while handling the device.
电源电压DC 5.00 V
输出电流 5.2 mA

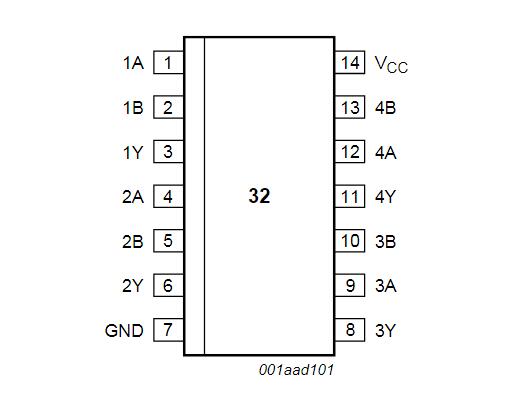

针脚数 14
逻辑门个数 4
输入数 2
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
封装 SOIC-14
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
香港进出口证 NLR
