74LCX08M

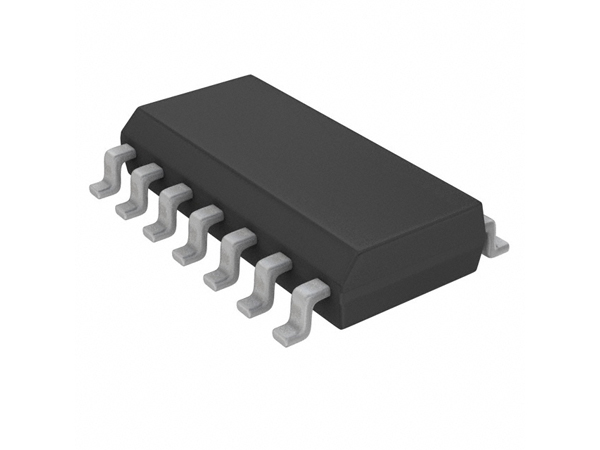

FAIRCHILD SEMICONDUCTOR  74LCX08M  与门, 4门, 2输入, 24 mA, 2V至3.6V, SOIC-14

The is a low voltage quad 2-input AND Gate with 5V tolerant inputs. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The device is fabricated with advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.

.

5.5ns Propagation delay tPD

.

Power down high impedance inputs and outputs

.

±24mA Output drive

.

Implements patented noise/EMI reduction circuitry

.

Latch-up performance exceeds JEDEC 78 conditions

.

ESD performance - human body model >2000V machine model >150V
