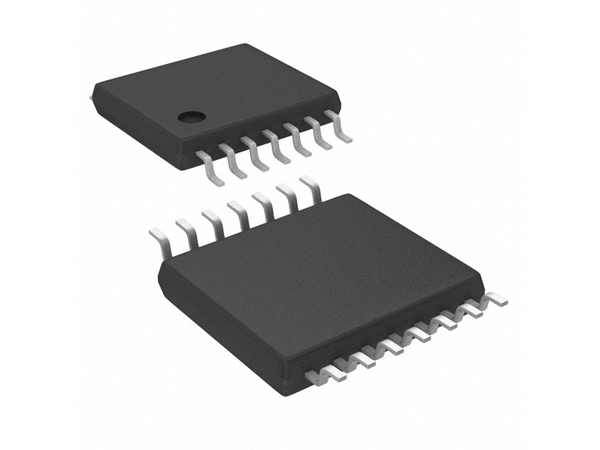

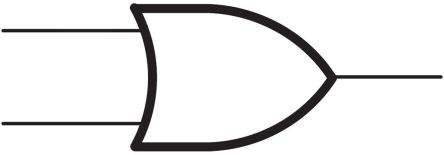

FAIRCHILD SEMICONDUCTOR 74LCX32MTC 芯片, 逻辑芯片 - 74LCX, 或门
Semiconductor brings you their latest logic gates, from which you can build and implement logical functions. This gate has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes in rail packaging to keep individual parts separated and protected. This device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V.
电源电压DC 2.00V min
输出接口数 1
输出电流 24 mA
电路数 4
针脚数 14
逻辑门个数 4
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
