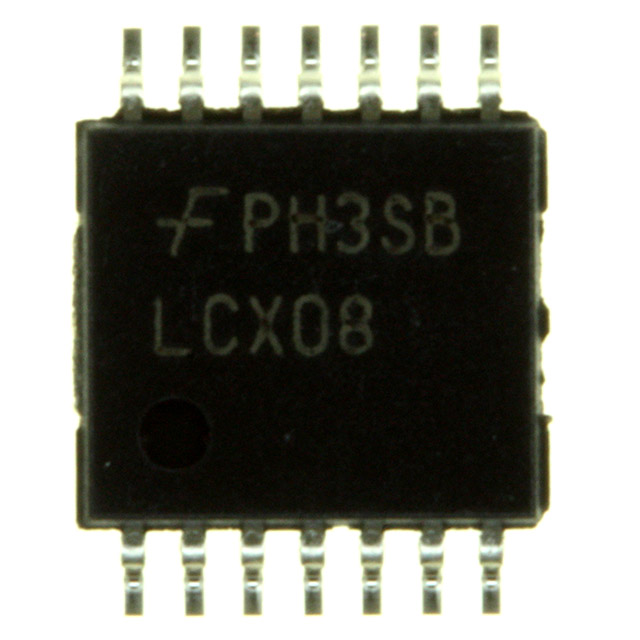

74LCX08MTCX

FAIRCHILD SEMICONDUCTOR  74LCX08MTCX  芯片, 逻辑芯片 - 74LCX, 与门

General Description

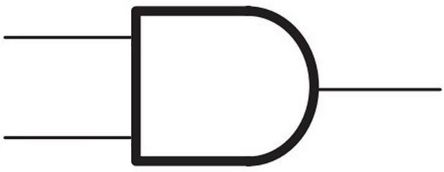

The LCX08 contains four 2-input AND gates. The inputs tolerate voltages up to 7V allowing the interface of 5V systems to 3V systems. The 74LVX08 is fabricated with advanced CMOS technol

ogy to achieve high speed operation while maintaining CMOS low power dissipation.

Features

■5V tolerant inputs

■2.3V–3.6V VCCspecifications provided

■5.5 ns tPDmax VCC  3.3V, 10 PA ICCmax

■Power down high impedance inputs and outputs

■r24 mA output drive VCC  3.0V

■Implements patented noise/EMI reduction circuitry

■Latch-up performance exceeds JEDEC 78 conditions

■ESD performance:

Human body model !2000V

Machine model !150V

■Leadless Pb-Free DQFN package
