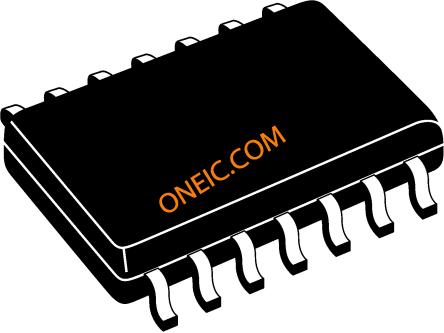

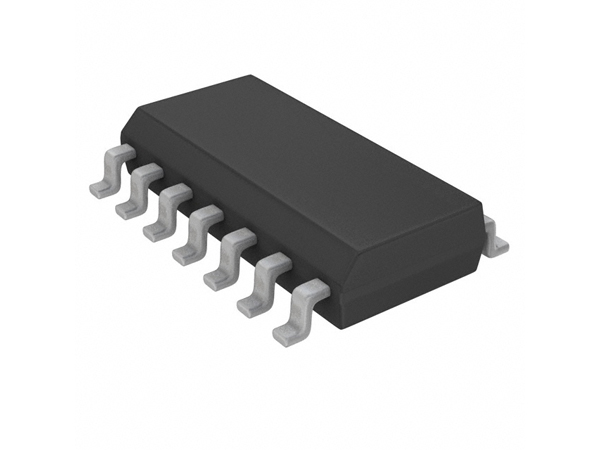

FAIRCHILD SEMICONDUCTOR 74AC14SC 非门, AC系列, 施密特触发, 6门, 1输入, 24 mA, 2V至6V, SOIC-14
The is an Inverter Schmitt Trigger contain six inverter gates each with a Schmitt trigger input. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, they have a greater noise margin than conventional inverters. It has hysteresis between the positive-going and negative-going input thresholds typically 1V, which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
电源电压DC 5.00 V
输出接口数 6
输出电流 24 mA
电路数 6
通道数 6
针脚数 14
静态电流 40 µA
逻辑门个数 6
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
74AC14SC Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MC74AC14DR2G 安森美 | 功能相似 | 74AC14SC和MC74AC14DR2G的区别 |
MC74AC14DG 安森美 | 功能相似 | 74AC14SC和MC74AC14DG的区别 |
