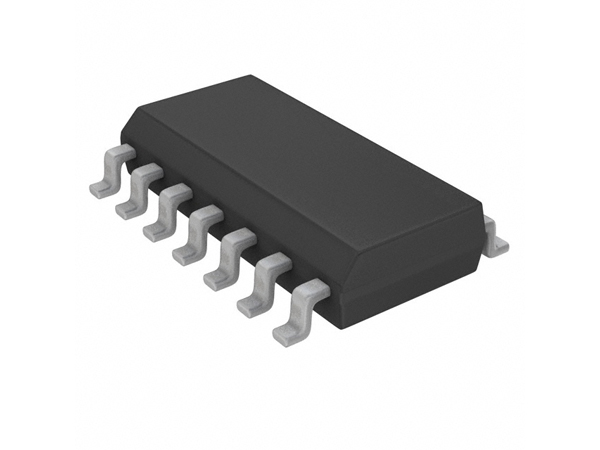

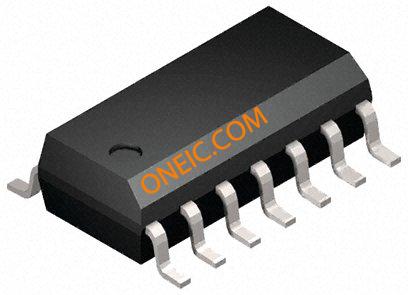

FAIRCHILD SEMICONDUCTOR 74AC14SCX 非门, AC系列, 施密特触发, 6输入, 24 mA, 2V至6V, SOIC-14
The is a Hex Inverter with Schmitt-trigger input device contain six inverter gates each with a Schmitt-trigger input. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. In addition, the device have a greater noise margin than conventional inverter. The device has hysteresis between the positive-going and negative-going input thresholds typically 1.0V, which is determined internally by transistor ratios and is essentially insensitive to temperature and supply voltage variations.
电源电压DC 2.00V min
输出电流 24 mA
电路数 6
针脚数 14
逻辑门个数 6
输入数 6
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 SOIC-14
长度 8.75 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
74AC14SCX Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
74AC14SC 飞兆/仙童 | 类似代替 | 74AC14SCX和74AC14SC的区别 |
SN74AC14D 德州仪器 | 功能相似 | 74AC14SCX和SN74AC14D的区别 |
SN74AC14DR 德州仪器 | 功能相似 | 74AC14SCX和SN74AC14DR的区别 |
