16位透明D类锁存器具有三态输出 16-BIT TRANSPARENT D-TYPE LATCH WITH 3-STATE OUTPUTS

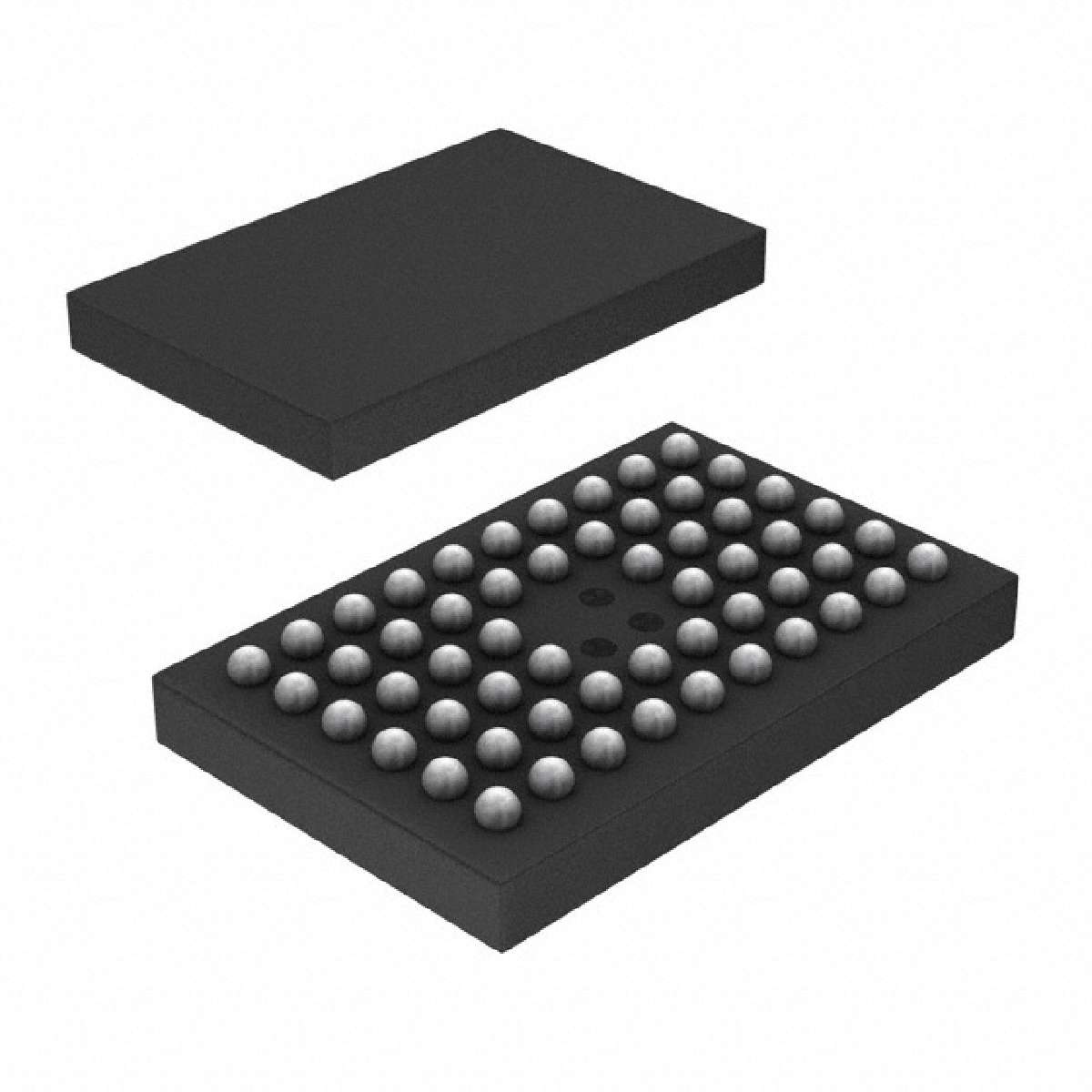

D 型透明 通道 8：8 IC 三态 56-BGA MICROSTAR JUNIOR（7.0x4.5）
得捷:
IC 16BIT D-TYPE LATCH 56BGA
贸泽:
闭锁 16B Transp D-Type
艾睿:
Say goodbye to real time information seeping through logic gates by using this d-type 74ALVCH162373ZQLR low-level latch from Texas Instruments. With a 3-state output, this is power management at its best. This latch has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has 16 channels per chip. This non-inverting device has a typical operating supply voltage of 1.8|2.5|3.3 V. Its minimum operating supply voltage of 1.65 V, while its maximum is 3.6 V.
安富利:
Latch Transparent 3-ST 16-CH D-Type 56-Pin BGA MICROSTAR JUNIOR T/R
Chip1Stop:
Latch Transparent 3-ST 16-CH D-Type 56-Pin BGA MICROSTAR JUNIOR T/R
Verical:
Latch Transparent 3-ST 16-CH D-Type 56-Pin BGA MICROSTAR JUNIOR T/R
电源电压DC 1.65V ~ 3.60V
输出接口数 16
电路数 2
通道数 16
位数 16
传送延迟时间 4.00 ns
输出电流驱动 -1.00 mA
输入数 16
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.65V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 56
封装 BGA-56
长度 7 mm
宽度 4.5 mm
高度 0.75 mm
封装 BGA-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
