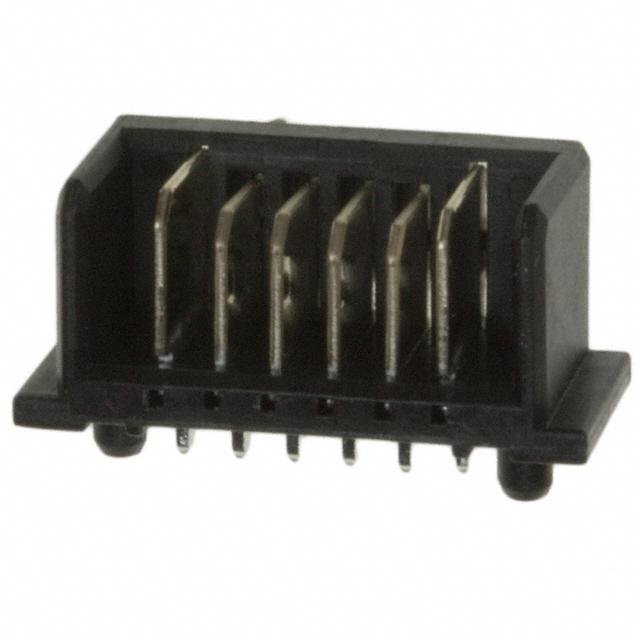

CONN HDR 6POS 2MM PCB SLDR
2mm Centerline Multi-Directional Interconnection System
Product Highlights
Header
AMP-DURAGOLD 30 Contact Mating Area Plating
PCB Mount Angle = Vertical
No PCB Retention Feature
Termination Solder Post Length = 2.00 mm
Search Keywords:
board to board, backplane, external box to box, MDI, high density, docking, power,
得捷:
CONN HDR 6POS 2.00MM PCB SLDR
贸泽:
Battery Contacts MDI HEADER ASSY 6P
Online Components:
2mm Centerline Multi-Directional Interconnection System
Electro Sonic:
2mm Centerline Multi-Directional Interconnection System
触点数 6
触点电镀 Tin over Nickel, Tin Lead, Gold
排数 1
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 6
安装角度 180 °
安装方式 Through Hole
引脚间距 2.00 mm
长度 20.5 mm
高度 9.13 mm
引脚间距 2.00 mm
外壳颜色 Black
颜色 Black
触点材质 Brass
工作温度 -55℃ ~ 105℃
产品生命周期 End of Life
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
