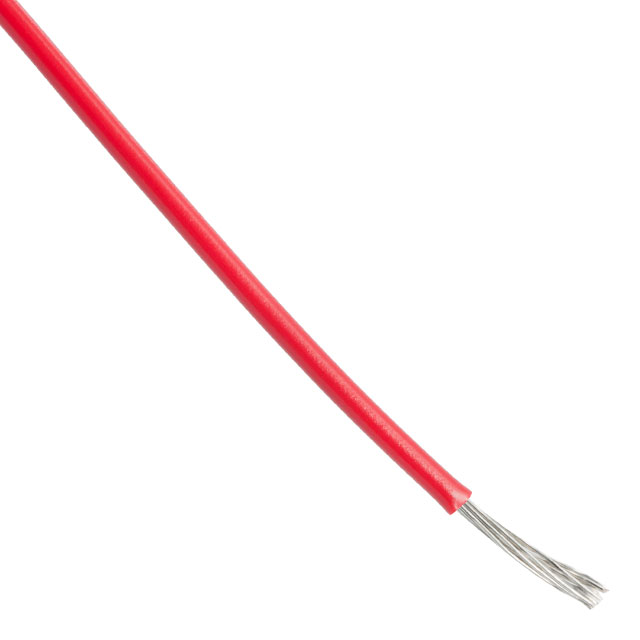

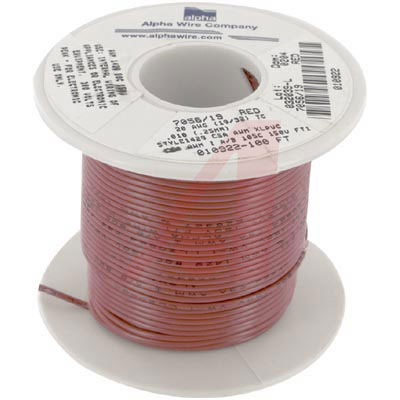

ALPHA WIRE 7056/19 RD005 Wire, Hook Up, UL1429, MIL-W-16878E Type B, PVC, Red, 20AWG, 0.62mm², 19 x 32AWG, 100Ft
-55°C Minimum Operating Temperature, Irradiated PVC Insulated Hook-Up Wire
** Conductor:** Stranded tinned copper. ** Insulation:** Color-coded irradiated PVC. ** Nominal Insulation Thickness:** 0.01" 0.25 mm. ** Voltage Rating:** 600 V. ** Type:** UL 1429. ** Stocked Colors:** 0-9.
Irradiated PVC insulated wire is exposed to controlled electron beam radiation which results in an insulation far superior to ordinary PVC. Irradiated PVC withstands High Er temperatures than ordinary PVC. Because of its ability to resist solder iron heat, it is the ideal material to use where high reliability is essential and particularly valuable in the wiring of tight, high-density systems. This insulation is tougher than ordinary PVC resulting in greatly improved abrasion and cut-through resistance.
