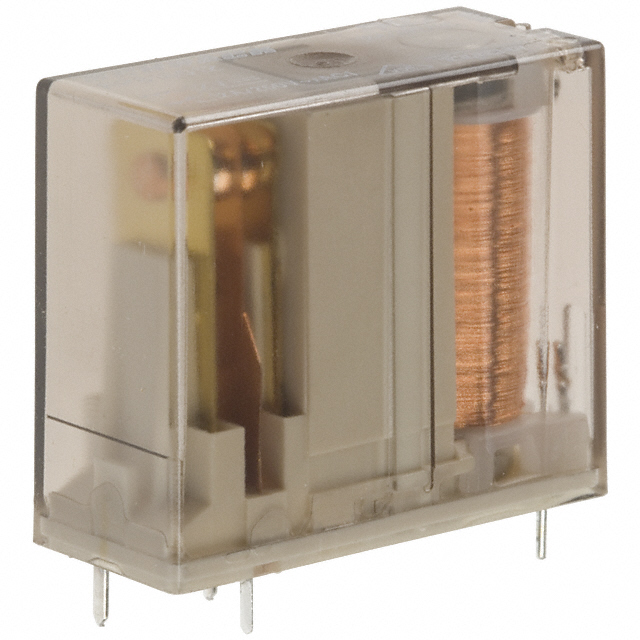

Electromechanical Relay 12VDC 270Ω 25A SPDT 29mm 12.6mm 25.5mm THT Power Relay
Electromechanical Relay 12VDC 270Ohm 25A SPDT 29mm 12.6mm 25.5mm THT Power Relay
Product Highlights
RPII/1 Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 16 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPDT 16A 12V
艾睿:
Power Relay 12VDC 25A SPDT29x12.6x25.5mm THT
TME:
Relay: electromagnetic; SPDT; Ucoil:12VDC; 16A/250VAC; 16A/24VDC
Verical:
Electromechanical Relay 12VDC 270Ohm 25A SPDT 29mm 12.6mm 25.5mm THT Power Relay
MASTER:
Electromechanical Relay 12VDC 270Ohm 25A SPDT 29mm 12.6mm 25.5mm THT Power Relay
Powell:
Reinforced PCB Relays up to 16A
Online Components:
Electromechanical Relay 12VDC 270Ohm 25A SPDT 29mm 12.6mm 25.5mm THT Power Relay
Electro Sonic:
Electromechanical Relay 12VDC 270Ohm 25A SPDT 29mm 12.6mm 25.5mm THT Power Relay
输入电压DC 12.0 V
触点类型 SPDT
跌落电压 1.20 V
触点额定电流 16.0 A
线圈电压 12 VDC
线圈电流 44.4 mA
线圈功率DC 500 mW
线圈电阻 270 Ω
载流 16.0 A
额定电流Max 25 A
线圈电压DC 12 V
额定功率Max 4 kVA
开关电流Max 25 A
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 440 V
安装方式 Through Hole
引脚数 8
长度 29.0 mm
宽度 12.6 mm
高度 25.5 mm
触点材质 Silver Cadmium Oxide
重量 18 g
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Non-Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
