Relay: electromagnetic; DPDT; Ucoil:24VAC; 8A/250VAC; 8A/30VDC; 8A
RT424524
Product Highlights
Relay Type = Power PCB Relay
Relay Style = PCB
RT2 Series

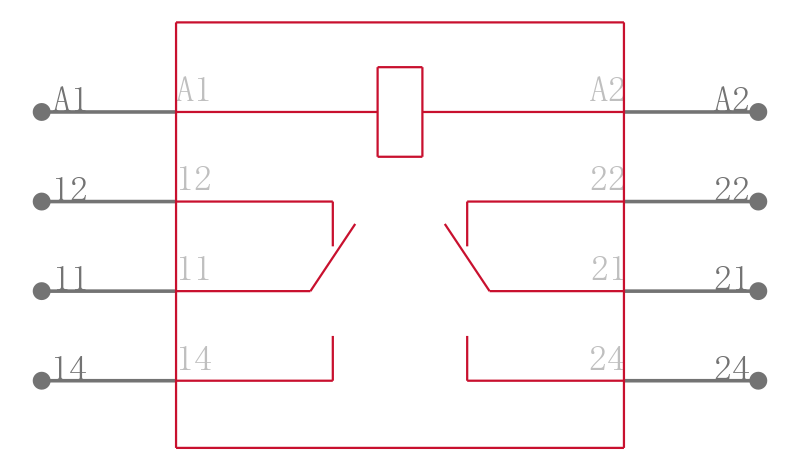

Contact Arrangement = 2 Form C, DPDT, 2 C/O
Contact Current Rating = 8 Amps.
得捷:
RT424524
艾睿:
Power Relay 24VAC 8A DPDT29x12.7x15.7mm THT
安富利:
Electromechanical Relay DPDT 15A 24VAC 350Ohm Through Hole
Chip1Stop:
Electromechanical Relay 24VAC 350Ohm 15A DPDT 29x12.7x15.7mm THT Power Relay
TME:
Relay: electromagnetic; DPDT; Ucoil:24VAC; 8A/250VAC; 8A/30VDC; 8A
Verical:
Electromechanical Relay 24VAC 350Ohm 15A DPDT 29x12.7x15.7mm THT Power Relay
MASTER:
RT424524
Powell:
Reinforced PCB Relays up to 16A
Online Components:
RT424524
Electro Sonic:
RT424524
额定电压AC 400 V
额定电流 8.00 A
触点类型 DPDT
跌落电压 3.60 V
触点额定电流 15 A
线圈电压 24 VAC
线圈电压AC 24 V
线圈电阻 350 Ω
载流 8.00 A
线圈功率AC 760 mW
额定电流Max 15 A
额定功率Max 2 kVA
开关电流Max 8 a
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V

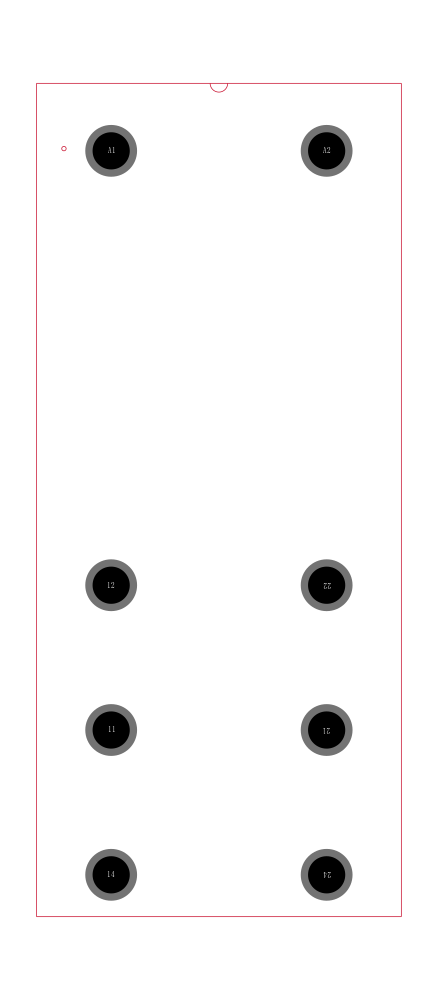

安装方式 Through Hole
引脚数 8
封装 DIP

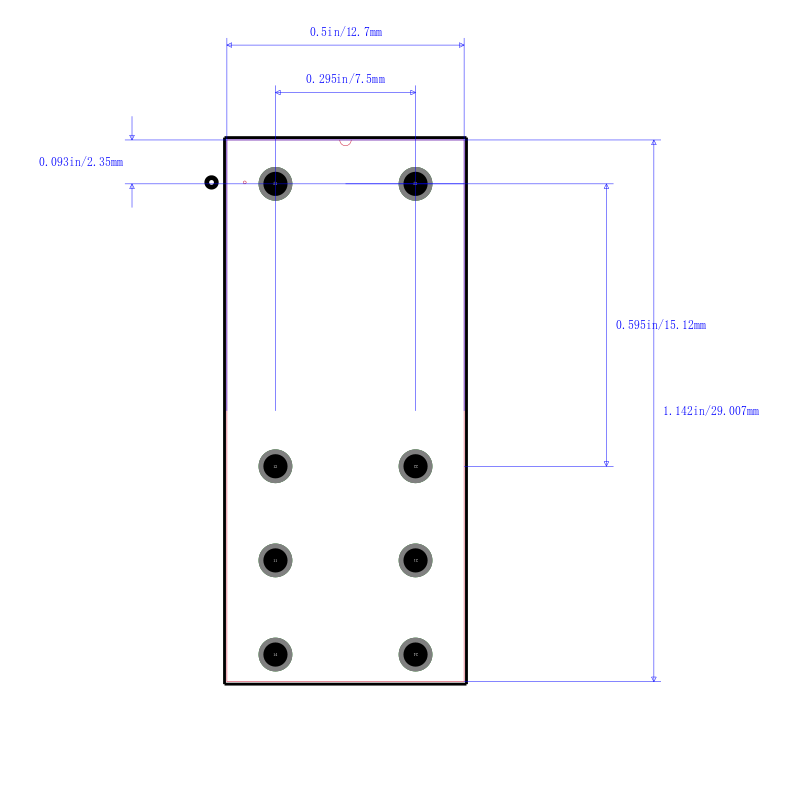

长度 29.0 mm
宽度 12.7 mm
高度 15.7 mm
封装 DIP
触点材质 Silver Nickel
重量 14 g
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
