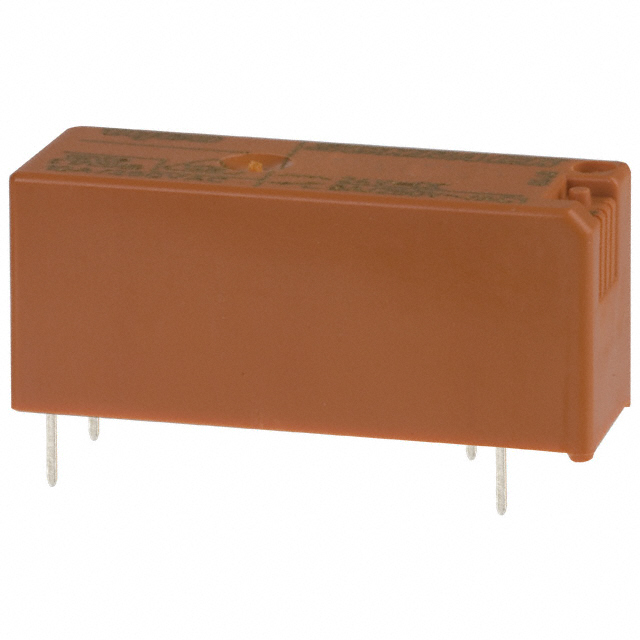

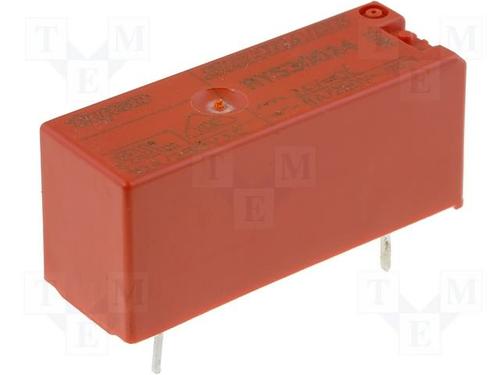

Electromechanical Relay 24VDC 2.35KΩ 8A SPST-NO 28.5mm 10.1mm 12.3mm THT Power Relay
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
Product Highlights
RYII Series
Contact Arrangement = 1 Form A, SPST-NO, 1 N/O
Contact Current Rating = 8 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RY530024
艾睿:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NO 28.5mm 10.1mm 12.3mm THT Power Relay
安富利:
Electromechanical Relay SPST-NO 8A 24VDC 2.35KOhm Through Hole
Chip1Stop:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
TME:
Relay: electromagnetic; SPST-NO; Ucoil:24VDC; 8A/250VAC; 8A/30VDC
Verical:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NO 28.5mm 10.1mm 12.3mm THT Power Relay
MASTER:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
Powell:
Reinforced PCB Relays up to 8A
Online Components:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
Electro Sonic:
Electromechanical Relay 24VDC 2.35KOhm 8A SPST-NO 28.5x10.1x12.3mm THT Power Relay
额定电压AC 400 V
额定功率 220 W
触点额定电流 8 A
线圈电压 24 VDC
线圈电流 10.2 mA
线圈功率DC 245 mW
线圈电阻 2.35 KΩ
额定电流Max 8 A
线圈电压DC 24 V
线圈功率 245 mW
额定功率Max 2 kVA
开关电流Max 8 a
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 4
高度 12.3 mm
触点材质 Silver Cadmium Oxide
重量 18 g
工作温度 -40℃ ~ 70℃
产品生命周期 Unknown
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490080
