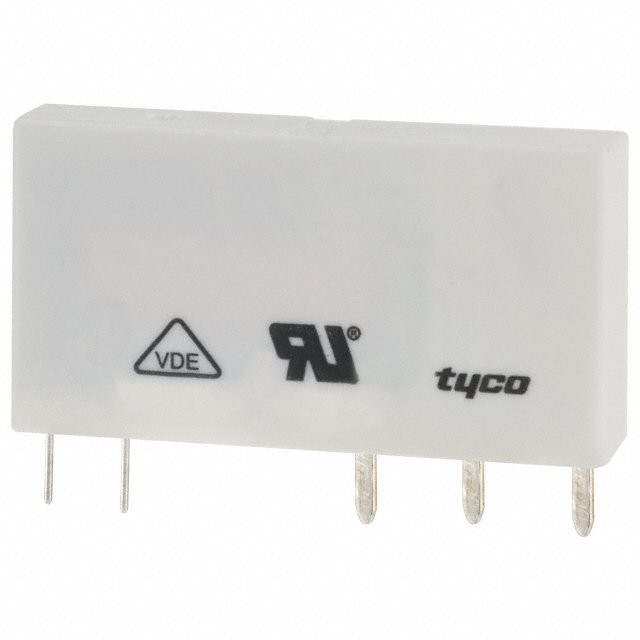

24VDC 6A 无锁存
V23092-B1024-A201
Product Highlights
SNR Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 6 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
得捷:
RELAY GEN PURPOSE SPDT 6A 24V
立创商城:
24VDC 6A 无锁存
艾睿:
Electromechanical Relay 24VDC 3.39KOhm 10A SPDT 28x15.5x5mm THT Slim PCB Relay
安富利:
Electromechanical Relay SPDT 10A 24VDC 3.39KOhm Through Hole
Chip1Stop:
Electromechanical Relay 24VDC 3.39KOhm 10A SPDT 28x15.5x5mm THT Slim PCB Relay
Verical:
Electromechanical Relay 24VDC 3.39KOhm 10A SPDT 28x15.5x5mm THT Slim PCB Relay
MASTER:
V23092-B1024-A201
Powell:
Industrial Relays General Purpose
Online Components:
V23092-B1024-A201
Electro Sonic:
V23092-B1024-A201
触点电镀 Gold
额定电压AC 400 V
输入电压DC 24.0 V
跌落电压 1.20 V
触点额定电流 10 A
线圈电压 24 VDC
线圈电流 7.1 mA
线圈功率DC 170 mW
线圈电阻 3.39 KΩ
额定电流Max 10 A
线圈电压DC 24 V
线圈功率 170 mW
额定功率Max 1.5 KVA
安装方式 Through Hole
引脚数 5
封装 SIP
长度 28 mm
宽度 15.5 mm
高度 5 mm
封装 SIP
触点材质 Silver Tin Oxide
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536410050
