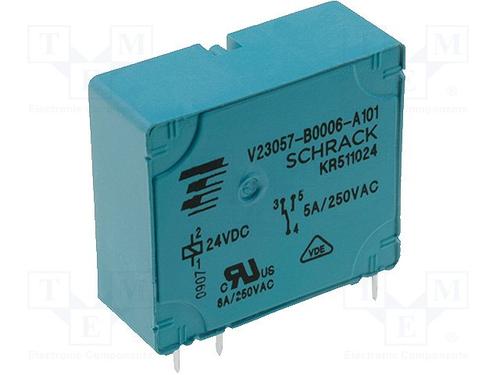

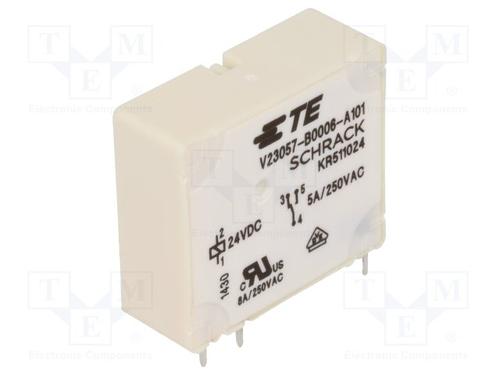

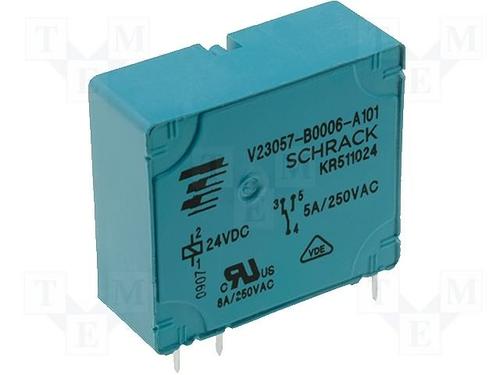

Electromechanical Relay 24VDC 1.2KΩ 15A SPDT 28mm 10.4mm 25.1mm THT Power Relay
V23057-B0006-A101
Product Highlights
Card E Series
Contact Arrangement = 1 Form C, SPDT, 1 C/O
Contact Current Rating = 5 Amps.
Monostable Coil Magnetic System
Without Coil Suppression Diode
立创商城:
7-1393215-5
艾睿:
Power Relay 24VDC 15A SPDT28x10.4x25.1mm THT
TME:
Relay: electromagnetic; SPDT; Ucoil:24VDC; 5A/250VAC; 5A/24VDC; 5A
Verical:
Electromechanical Relay 24VDC 1.2KOhm 15A SPDT 28mm 10.4mm 25.1mm THT Power Relay
MASTER:
V23057-B0006-A101
Powell:
Reinforced PCB Relays up to 8A
Online Components:
V23057-B0006-A101
Electro Sonic:
V23057-B0006-A101
额定电压AC 400 V
输入电压DC 24.0 V
触点类型 SPDT
跌落电压 2.40 V
触点额定电流 15 A
线圈电压 24 VDC
线圈电流 20 mA
线圈功率DC 480 mW
线圈电阻 1.2 KΩ
载流 5.00 A
额定电流Max 15 A
线圈电压DC 24 V
额定功率Max 1.25 KVA
开关电流Max 15 a
工作温度Max 70 ℃
工作温度Min -40 ℃
额定电压AC Max 400 V
安装方式 Through Hole
引脚数 5
封装 -
高度 25.1 mm
封装 -
触点材质 Silver Nickel
工作温度 -40℃ ~ 70℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
ELV标准 Compliant
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536410050
