7036 RD005

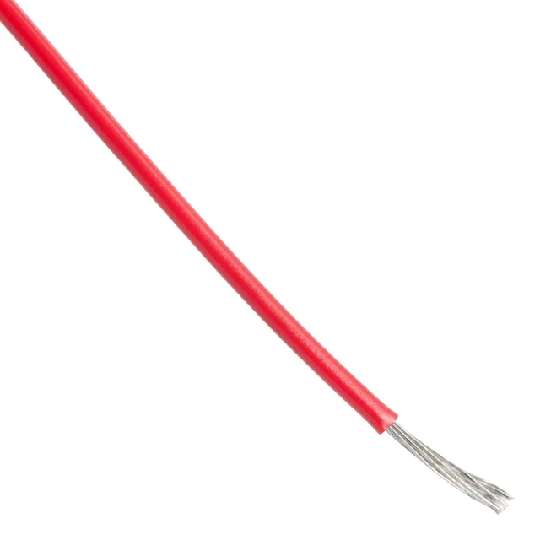

ALPHA WIRE 7036 RD005 Wire, Hook Up, 12AWG, 3.1mm , 300V, Red, 100Ft, 30.5m

The is a 100ft Hook-up Wire with stranded tinned copper conductor and irradiated XLPVC insulation. It is exactly suited for application as control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven or off-road construction equipment. This MIL-W-16878E type-C wire has the ability to withstand wear and abrasion, cut-through resistance, solder-iron resistance, electrical properties and resistance to oil, solvents and chemicals. It provides excellent uniformity for easy handling, stripping and termination. It is used in high-density wiring.

.

51lbs Maximum pull tension

.

0.03µH/ft Nominal inductance
