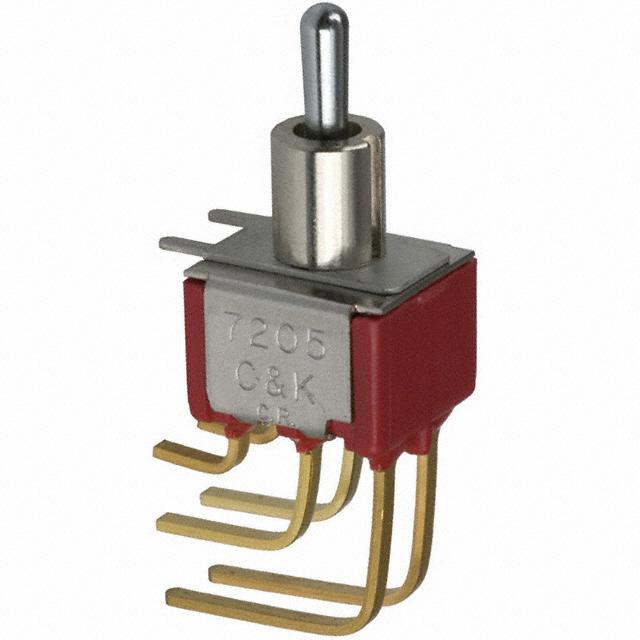

Switch Toggle Mom OFF Mom DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket
Miniature Toggle Switch
立创商城:
7205MD9AV2BE
得捷:
SWITCH TOGGLE DPDT 0.4VA 20V
贸泽:
Toggle Switches Switch Toggle Dpdt Vert R/A Pcb
艾睿:
Switch Toggle Mom OFF Mom DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Medical Bulk
Allied Electronics:
Switch Toggle Mom OFF Mom DPDT Round Lever PC Pins
Chip1Stop:
Switch Toggle Mom OFF Mom DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket
Verical:
Switch Toggle Mom OFF Mom DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Bulk
Newark:
# C & K COMPONENTS 7205MD9AV2BE Toggle Switch,RIGHT ANGLE,DPDT,ON-OFF-ON,PC TAIL Terminal,TOGGLE BAT,PCB Hole Count:8
MASTER:
Miniature Toggle Switch
Electro Sonic:
Miniature Toggle Switch
额定电压DC 20 V
额定电压AC 20 V
排数 2
额定功率 0.4 VA
触点类型 2PDT
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <10 mΩ
安装方式 Through Hole
封装 -
长度 11.43 mm
高度 12.7 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 40000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
