7101MD9AV2BE

C & K COMPONENTS  7101MD9AV2BE  拨动开关, 7000系列, 不发光, SPDT, 开-开, 通孔安装, 5 A

拨动 SPDT 通孔，直角，垂直

得捷:
SWITCH TOGGLE SPDT 0.4VA 20V

立创商城:
7101MD9AV2BE

e络盟:
拨动开关, 开-开, SPDT, 不发光, 7000系列, 通孔安装, 5 A

艾睿:

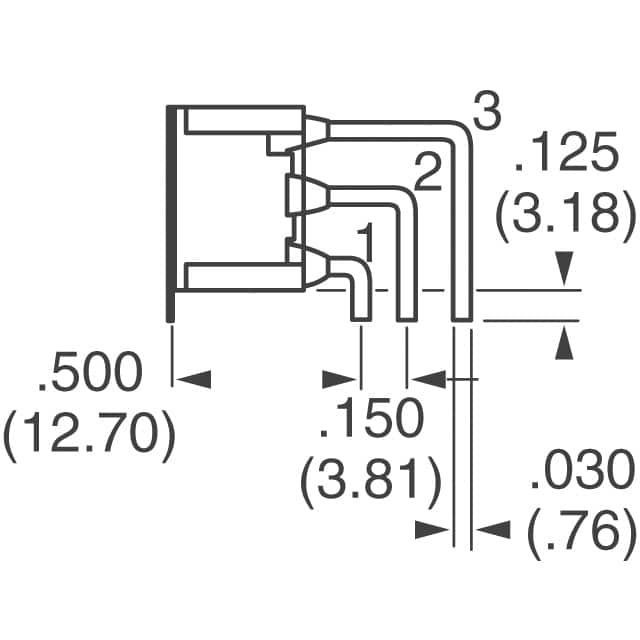

The 7101MD9AV2BE toggle switch from C&a;K Components comes with minimal lag when toggling a component of your circuit. It has a SPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 7101MD9AV2BE toggle switch has a PC pin termination style. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC. This product is 6.86 mm long, 12.7 mm tall and 34.67 mm deep.

Allied Electronics:
Switch; Toggle; Sealed; SPDT; ON-ON; .200 Act; W/Bushing; 0.4A; 20VAC/DC; Vert R/A PC

安富利:
Switch Toggle ON None ON SPDT Toggle PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket

Chip1Stop:
Switch Toggle ON None ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket

TME:
Switch: toggle; Positions:2; SPDT; ON-ON; 2A/250VAC; 5A/28VDC; IP40

Verical:
Switch Toggle ON None ON SPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Medical Bulk

Newark:

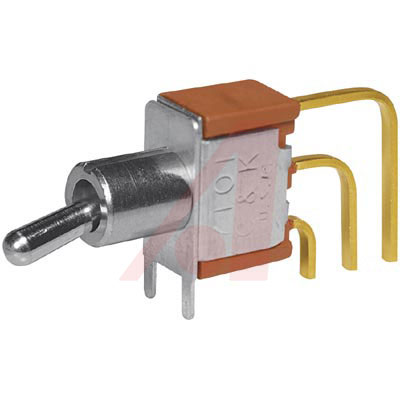

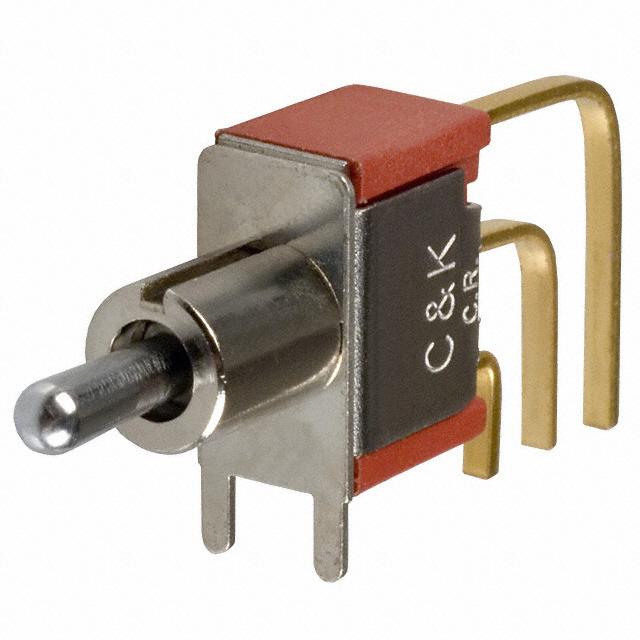

The 7101MD9AV2BE is a single-pole double-throw SPDT Miniature Toggle Switch with vertical right angle PC through-hole termination, 0.200-inch high chrome plated brass actuator, 0.280-inch high keyway bushing and ON-NONE-ON function. The 7000 series switch has gold over nickel plated copper alloy contact and stainless steel housing. Epoxy terminal seal is compatible with bottom-wash cleaning.

MASTER:
Miniature Toggle Switch

Online Components:
Miniature Toggle Switch

Electro Sonic:
Miniature Toggle Switch
