Res Thick Film NET 5.1KΩ 2% 1.1W ±100ppm/℃ BUS Conformal Coated 8Pin SIP Pin Thru-Hole Bulk
5.1k Ohm ±2% 100mW Power Per Element Bussed Resistor Network/Array ±100ppm/°C 8-SIP
得捷:
RES ARRAY 7 RES 5.1K OHM 8SIP
贸泽:
Resistor Networks & Arrays 5.1Kohms 8Pin 2% Bussed
艾睿:

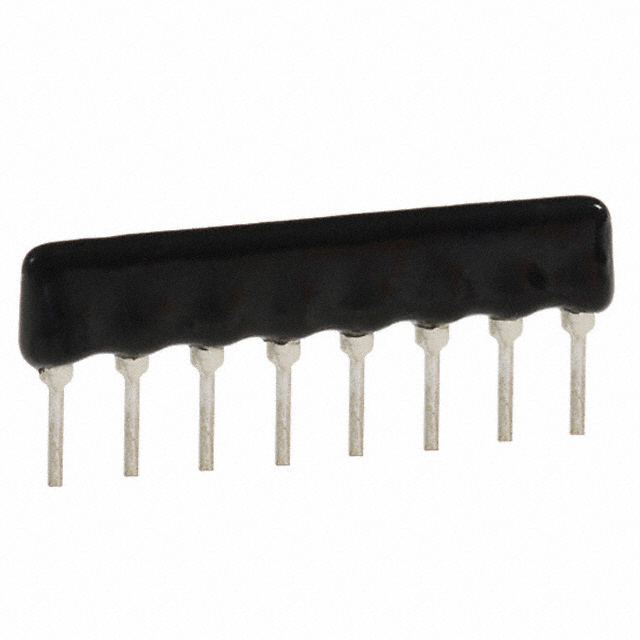

By combining multiple resistors into a single chip, the 77081512P resistor array, developed by CTS, can help you save space and power in your circuit design. This dependable part has a power rating of 1.1 W and a power rating per resistor of 0.15 W. This product&s;s 7 resistors have a value of 5.1K Ohm. Its temperature coefficient is ±100 ppm/°C. It has 8 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This part has an operating temperature of -55 to 125 °C. This product is 20.32 mm long, 4.95 mm tall and 2.5 mm deep. This device utilizes thick film technology. The 77081512P part has a pin termination style. This product&s;s terminal pitch is 2.54 mm. It has a tolerance of 2%.
Chip1Stop:
Res Thick Film NET 5.1K Ohm 2% 1.1W ±100ppm/℃ BUS Conformal Coated 8-Pin SIP Pin Thru-Hole Bulk
