74LVC1G66GW-Q100,1

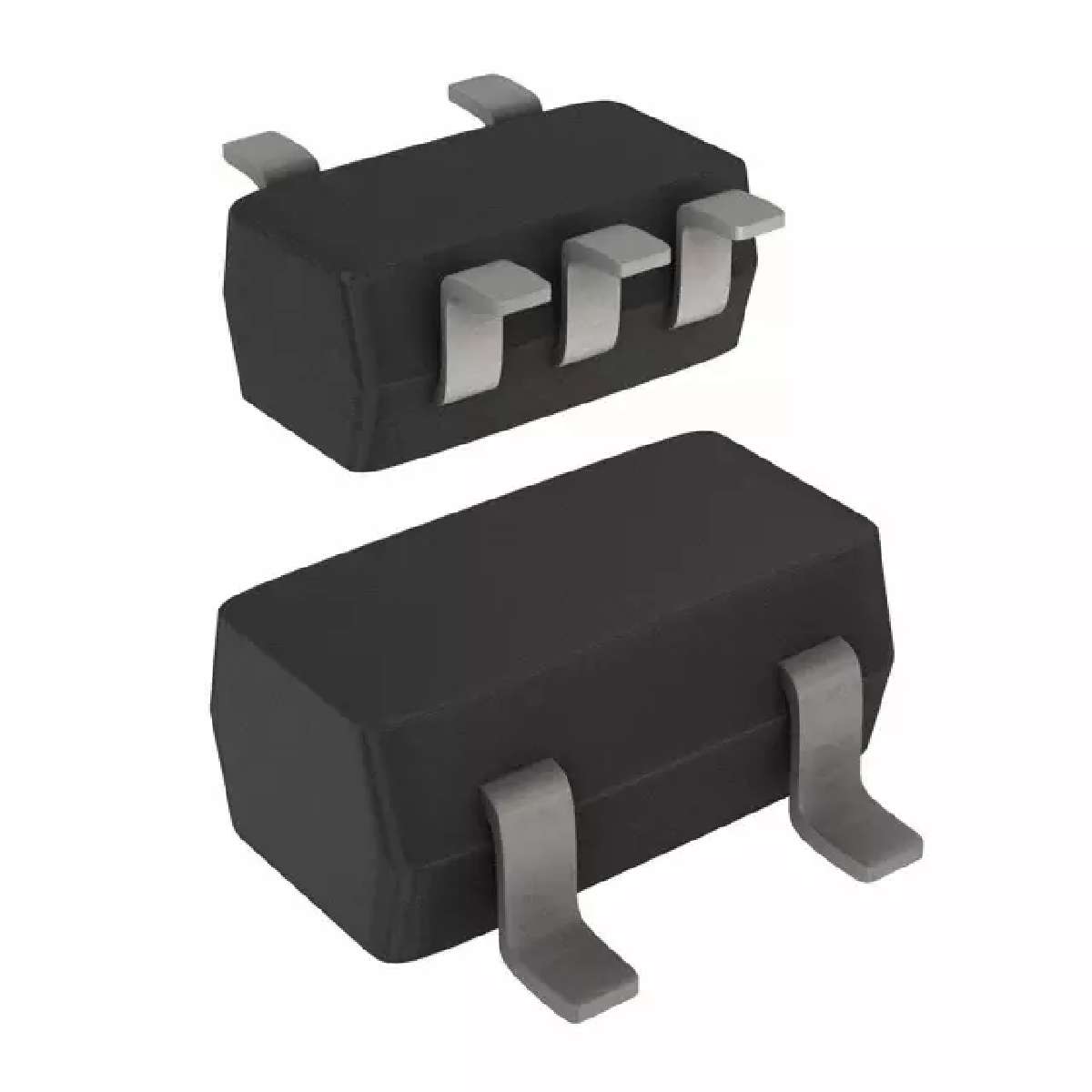

Analog Switch Single SPST 5Pin TSSOP

* Automotive product qualification in accordance with AEC-Q100 Grade 1 * Specified from -40 °C to +85 °C and from -40 °C to +125 °C * Wide supply voltage range from 1.65 V to 5.5 V * Very low ON resistance: * 7.5 Ω typical at VCC = 2.7 V * 6.5 Ω typical at VCC = 3.3 V * 6 Ω typical at VCC = 5 V * Switch current capability of 32 mA * High noise immunity * CMOS low power consumption * TTL interface compatibility at 3.3 V * Latch-up performance meets requirements of JESD78 Class I * ESD protection: * MIL-STD-883, method 3015 exceeds 2000 V * HBM JESD22-A114F exceeds 2000 V * MM JESD22-A115-A exceeds 200 V C = 200 pF, R = 0 Ω * Enable input accepts voltages up to 5.5 V * Multiple package options
