拨动开关 Toggle

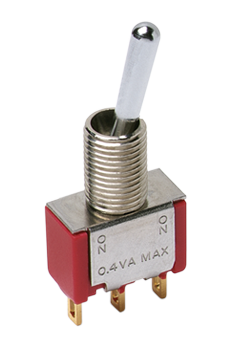

Miniature Toggle Switch
立创商城:
7201SYABE
得捷:
SWITCH TOGGLE DPDT 0.4VA 20V
贸泽:
拨动开关 Toggle
艾睿:
This 7201SYABE toggle switch from C&a;K Components is the best at minimizing lag between switches in your design. It has a DPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The 7201SYABE toggle switch has a PC pin termination style. This product is 12.7 mm long, 11.43 mm tall and 36.71 mm deep. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC.
Chip1Stop:
Switch Toggle ON None ON DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket and Threads
Verical:
Switch Toggle ON None ON DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket and Threads Medical Bulk
Newark:
# C & K COMPONENTS 7201SYABE Toggle Switch,RIGHT ANGLE,DPDT,ON-ON,PC TAIL Terminal,TOGGLE BAT,PCB Hole Count:8
MASTER:
Miniature Toggle Switch
Online Components:
Miniature Toggle Switch
Electro Sonic:
Miniature Toggle Switch
额定电压DC 20 V
额定电压AC 20 V
绝缘电阻 10 GΩ
排数 2
触点类型 DPDT
绝缘 Epoxy
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 20 V
额定电压AC Max 20 V
接触电阻Max <10 mΩ
安装方式 Bracket
封装 -
长度 12.7 mm
高度 11.43 mm
封装 -
触点材质 Copper Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 100000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
