7203MD9AV2BE

7000 系列 小型 双刀双掷 开-关-开 直角 通孔 钮子开关

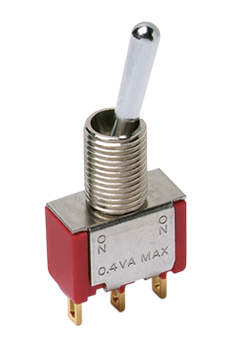

C&K Series 7000 toggle switches come in a variety of bushing, mounting and toggle styles all miniature scale in size. Available right angle pcb mounting vertical or horizontal operation makes the most of limited space and epoxy terminal seals are compatible with bottom wash cleaning.

立创商城:
7203MD9AV2BE

得捷:
SWITCH TOGGLE DPDT 0.4VA 20V

贸泽:
Toggle Switches Toggle

艾睿:
Control the status of your project with this 7203MD9AV2BE toggle switch from C&a;K Components. It has a DPDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The 7203MD9AV2BE toggle switch has a PC pin termination style. This product is 11.43 mm long, 12.7 mm tall and 34.67 mm deep. The maximum AC voltage rating is 20 VAC and the maximum DC voltage rating is 20 VDC.

Allied Electronics:
Switch, Toggle, Miniature, On-Off-On, DP, .200 Inch Act, Vert Right Angle, Gold

Chip1Stop:
Switch Toggle ON OFF ON DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket

Verical:
Switch Toggle ON OFF ON DPDT Round Lever PC Pins 20VAC 20VDC 0.4VA PC Mount with Bracket Medical Bulk

Newark:
# C & K COMPONENTS  7203MD9AV2BE  Toggle Switch,RIGHT ANGLE,DPDT,ON-OFF-ON,PC TAIL Terminal,TOGGLE BAT,PCB Hole Count:8

MASTER:
Miniature Toggle Switch

Electro Sonic:
Miniature Toggle Switch
