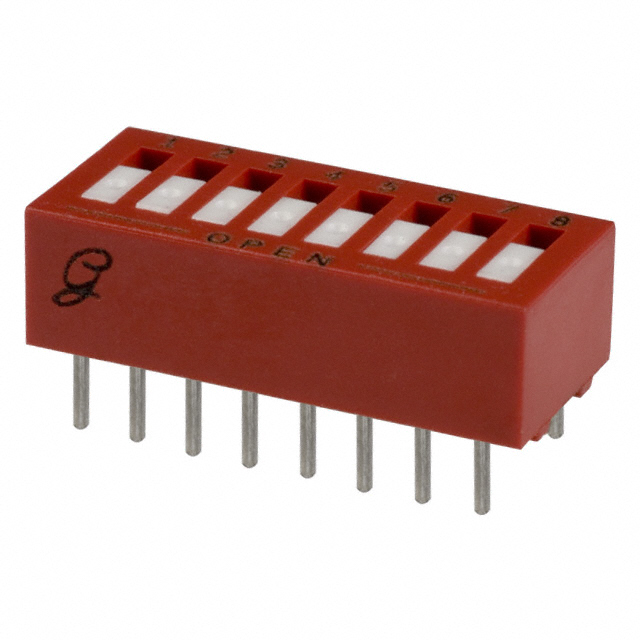

76RSB08ST

GRAYHILL  76RSB08ST  DIP / SIP开关, 76系列, SPST, 通孔安装, 8 电路, DIP密封, 30 VDC

DIP rocker switches are easy to install and more convenient to use than pin headers and jumper blocks.

得捷:
SWITCH ROCKER DIP SPST 150MA 30V

贸泽:
DIP Switches / SIP Switches DIP Switch SPST 8 Pos Tape Seal

e络盟:
DIP / SIP开关, 8 电路, 船型, 通孔安装, SPST, 30 VDC, 150 mA

艾睿:
By acting as a series of switches, the 76RSB08ST dual in-line package switch from Grayhill is the ideal component for use on a printed circuit board. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 76RSB08ST DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. This product is 22.4 mm long, 7.42 mm tall and 9.65 mm deep. The maximum DC voltage rating is 30 VDC.

Allied Electronics:
8 Way Through Hole DIP Switch SPST; Piano Actuator

Jameco:
DIP Switch 8 Position On Off Single Pole 0.15 Amp @ 30 Volt Recessed Rocker

安富利:
Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Newark:
DIP / SIP Switch, Recessed Rocker, 8 Circuits, SPST, Through Hole, 76 Series, DIP Sealed, 30 VDC

MASTER:
Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP ON OFF SPST 8 Recessed Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
