76SB10ST

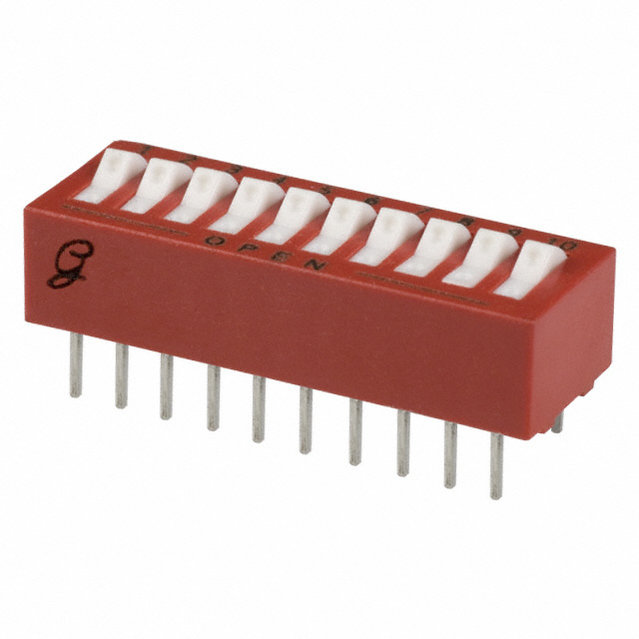

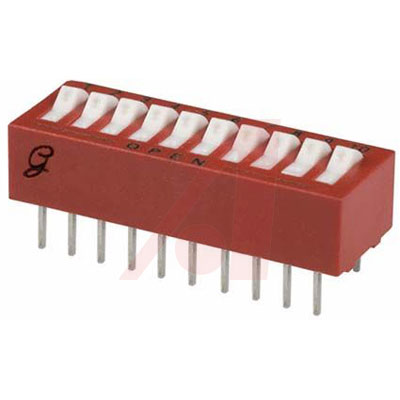

GRAYHILL  76SB10ST  开关, DIP, SPST, 10位置, PCB安装

DIP rocker switches are easy to install and more convenient to use than pin headers and jumper blocks.

得捷:
SWITCH ROCKER DIP SPST 150MA 30V

e络盟:
开关, DIP, SPST, 10位置, PCB安装

艾睿:
Use Grayhill&s;s 76SB10ST dual in-line package switch to easily control different electric paths on a printed circuit board. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 76SB10ST DIP switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 27.4 mm long, 8 mm tall and 9.65 mm deep. This product&s;s terminal pitch is 2.54 mm.

Allied Electronics:
Switch, DIP; 10 Pos. SPST; Raised rocker; 0.15A, 30VDC; Tape seal

安富利:
Switch DIP ON OFF SPST 10 Raised Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP ON OFF SPST 10 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP ON OFF SPST 10 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  76SB10ST  DIP / SIP Switch, Raised Rocker, 10 Circuits, SPST, Through Hole, 76 Series, DIP Sealed, 30 VDC

MASTER:
Switch DIP ON OFF SPST 10 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP ON OFF SPST 10 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Win Source:
SWITCH ROCKER DIP SPST 150MA 30V / Dip Switch SPST 10 Position Through Hole Rocker Actuator 150mA 30VDC
