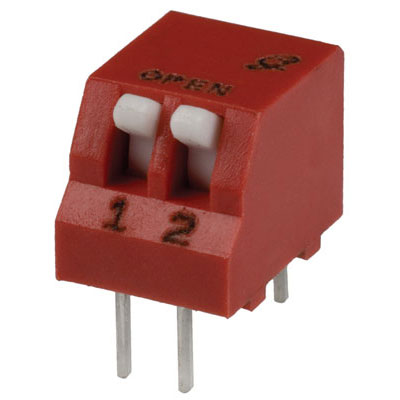

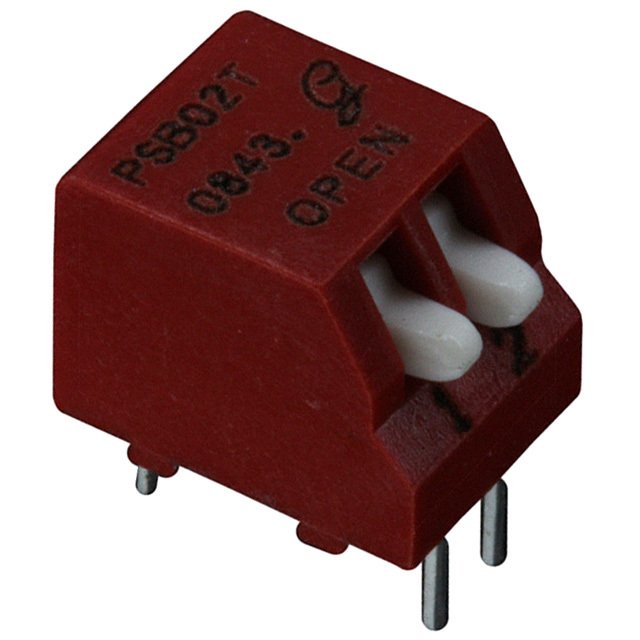

76PSB02T

76 系列 侧面触动 单刀单掷 2 位置 通孔 DIP 开关

DIP SPST 2 位置 通孔，直角 Piano 触动器 150mA 30VDC

得捷:
SWITCH PIANO DIP SPST 150MA 30V

贸泽:
DIP Switches / SIP Switches DIP Switch SPST up is off 2 Pos

艾睿:
By acting as a series of switches, the 76PSB02T dual in-line package switch from Grayhill is the ideal component for use on a printed circuit board. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 76PSB02T DIP switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 7.1 mm long, 7.65 mm tall and 9.65 mm deep. This product&s;s terminal pitch is 2.54 mm.

Allied Electronics:
Switch, DIP; 0.280 in. L x 0.380 in. W; 2; SPST; Thru-Hole; 0.1 in.; 0.02 in.

Jameco:
DIP Switch 2 Position On Off Single Pole 0.15 Amp @ 30 Volt Piano

安富利:
Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Newark:
DIP Switch SPST side actuated 2 position

MASTER:
Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Online Components:
Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP ON OFF SPST 2 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
