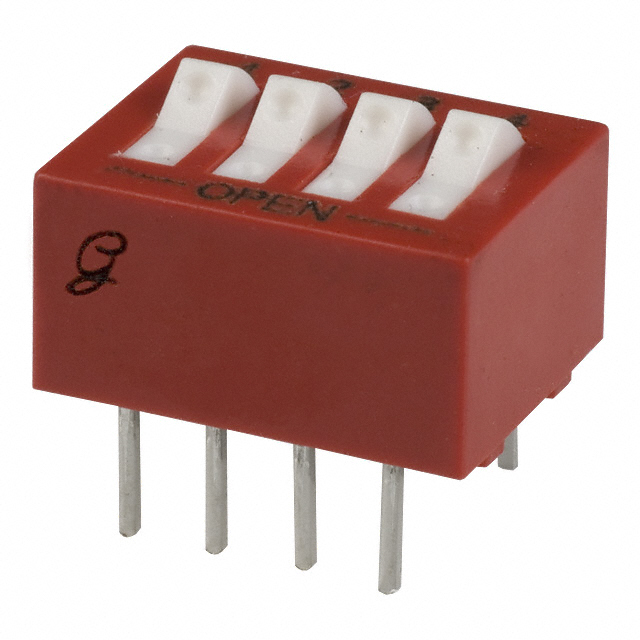

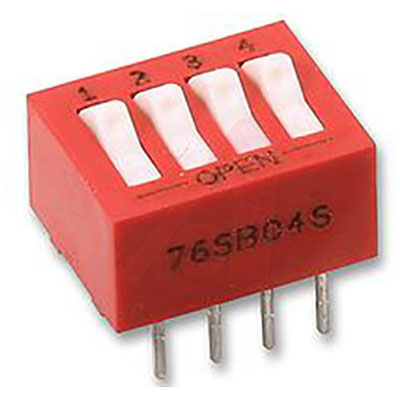

GRAYHILL 76SB04ST DIP / SIP开关, 76系列, SPST, 通孔安装, 4 电路, DIP密封, 30 VDC
DIP SPST 4 位置 通孔 摇臂 触动器 150mA 30VDC
得捷:
SWITCH ROCKER DIP SPST 150MA 30V
立创商城:
76SB04ST
贸泽:
DIP 开关/ SIP 开关 DIP Switch SPST 4 Pos Tape Seal
e络盟:
DIP / SIP开关, 4 电路, 船型, 通孔安装, SPST, 30 VDC, 150 mA
艾睿:
The 76SB04ST dual in-line package switch, developed by Grayhill, can give you electronic flow control within your printed circuit board. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 76SB04ST DIP switch has a PC pin termination style. This product is 12.2 mm long, 8 mm tall and 9.65 mm deep. The maximum DC voltage rating is 30 VDC. This product&s;s terminal pitch is 2.54 mm.
Allied Electronics:
Switch, DIP; SPST; 4 Pos; Raised Rocker; 0.5A at 30VDC; Tape seal
安富利:
Switch DIP ON OFF SPST 4 Raised Rocker 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP ON OFF SPST 4 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Verical:
Switch DIP ON OFF SPST 4 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Newark:
DIP / SIP Switch, Raised Rocker, 4 Circuits, SPST, Through Hole, 76 Series, DIP Sealed, 30 VDC
MASTER:
Switch DIP ON OFF SPST 4 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Electro Sonic:
Switch DIP ON OFF SPST 4 Raised Rocker 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
额定电压DC 30 V
接触器类型 Rocker
额定电流 150 mA
绝缘电阻 5000 MΩ
电容 5.00 pF
方向 Vertical
触点类型 SPST
电路数 4
针脚数 4
接触电阻 30 mΩ
额定电流Max 0.15A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 30 VDC
额定电压DC Max 30 V
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm
长度 12.2 mm
宽度 9.65 mm
高度 8 mm
脚长度 3.96 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
HTS代码 8536509065
