78B02ST

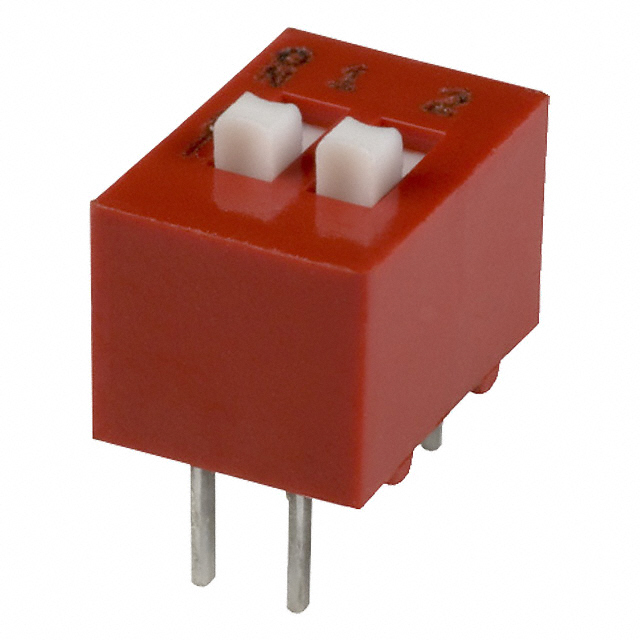

GRAYHILL  78B02ST  开关, DIP, SPST, 2位置, PCB安装

Top tape sealed DIP slide switches may be machine soldered.

得捷:
SWITCH SLIDE DIP SPST 150MA 30V

e络盟:
开关, DIP, SPST, 2位置, PCB安装

艾睿:
Add push button-type user control to your printed circuit board using the 78B02ST dual in-line package switch from Grayhill. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 78B02ST DIP switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product is 7.1 mm long, 8 mm tall and 9.65 mm deep. This product&s;s terminal pitch is 2.54 mm.

Allied Electronics:
Switch, DIP; 2 Pos. SPST; Raised Slide; 0.15A, 30VDC; Tape seal

安富利:
Switch DIP OFF ON SPST 2 Raised Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP OFF ON SPST 2 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 2 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Newark:
DIP / SIP Switch, Raised Slide, 2 Circuits, SPST, Through Hole, 78 Series, DIP Sealed, 24 VDC

MASTER:
Switch DIP OFF ON SPST 2 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 2 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
