Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycle 2.94N SMD Tube
Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube
得捷:
SWITCH TACTILE SPST-NO 0.1A 16V
艾睿:

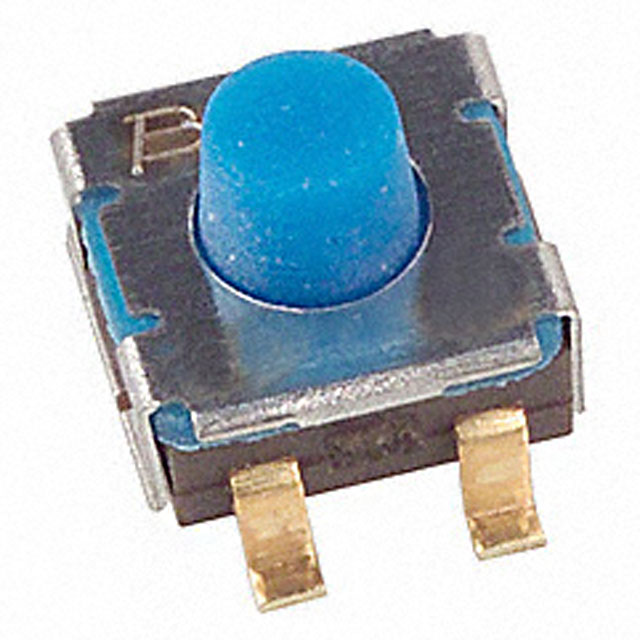

The key switch 7914G-1-000 tactile switch from Bourns lets you quickly turn on your system by use of pressure. This device has a maximum current rating of 0.1. It has a SPST configuration. This tactile switch has an operating temperature range of -55 °C to 125 °C. The 7914G-1-000 tactile switch has a gull wing termination style. The maximum AC voltage rating is 16 VAC and the maximum DC voltage rating is 16 VDC. This round button actuator is 1.65 mm long. This product is 5 mm long, 4.19 mm tall and 6.2 mm deep.
安富利:
Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycle 2.94N SMD Tube
Chip1Stop:
Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube
Verical:
Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube
Online Components:
Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube
Electro Sonic:
Switch Tactile N.O. SPST Round Button Gull Wing 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube
额定电压DC 16 V
额定电压AC 16 V
额定电流 100 mA

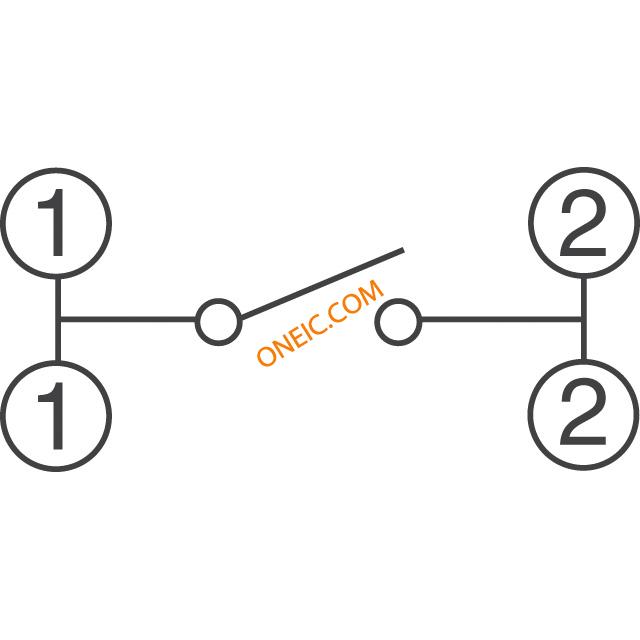

触点类型 SPST-NO
额定电流Max 0.1A @16VAC, 16VDC
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压DC Max 16 V
额定电压AC Max 16 V
接触电阻Max 100 mΩ
安装方式 Surface Mount

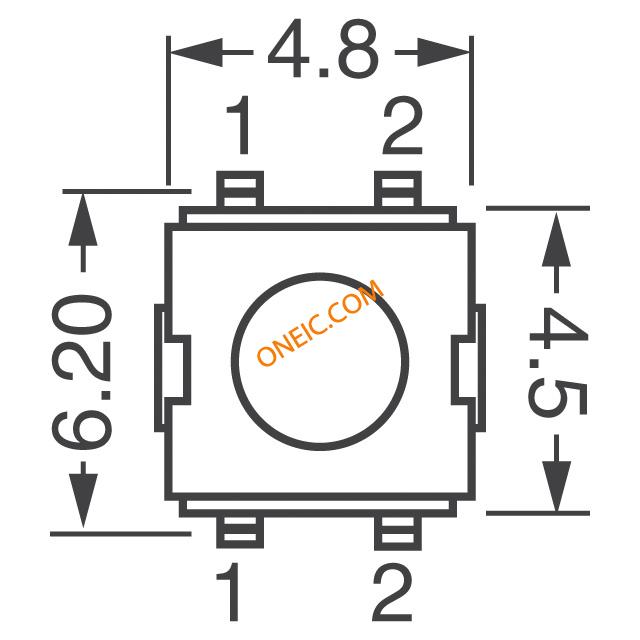

长度 5 mm
宽度 6.2 mm
高度 4.19 mm
触点材质 Gold
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
