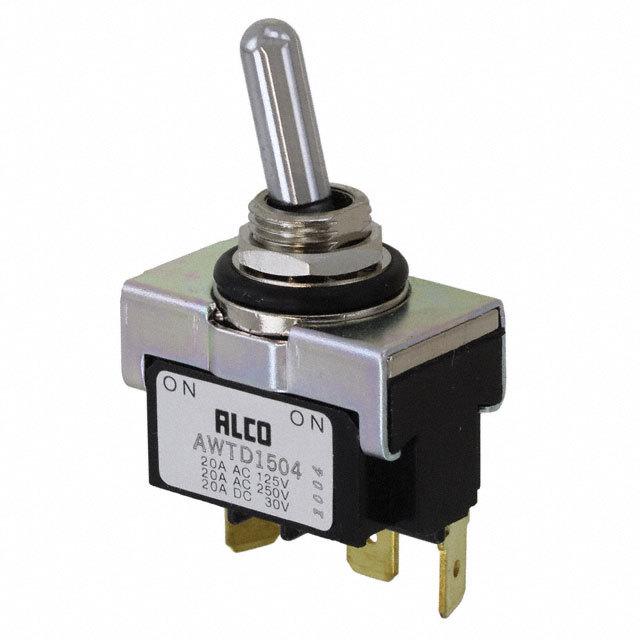

Switch Toggle ON ON SPDT Round Lever Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Bulk
AWTD1504 = POWER TOGGLE
立创商城:
7-6437630-0
得捷:
SWITCH TOGGLE SPDT 20A 125V
艾睿:
Switch Toggle ON ON SPDT Round Lever Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Bulk
安富利:
Switch Toggle ON ON SPDT Round Toggle Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Bulk
Chip1Stop:
Switch Toggle ON ON SPDT Round Lever Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Bulk
Verical:
Switch Toggle ON ON SPDT Round Lever Quick Conn 20A 250VAC 30VDC Panel Mount with Threads Bulk
Powell:
AWTD1504 = POWER TOGGLE
Online Components:
AWTD1504 = POWER TOGGLE
Electro Sonic:
AWTD1504 = POWER TOGGLE
触点电镀 Silver Alloy
额定电压DC 30 V
额定电压AC 125 V
额定电流 20A AC, 20A DC
绝缘电阻 1 GΩ
额定电流Max 20A @250VAC, 30VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
额定电压 30 V
额定电压DC Max 30 V
额定电压AC Max 250 V
接触电阻Max 10 mΩ
安装方式 Panel, Screw-In
封装 -
长度 33 mm
宽度 21 mm
高度 59.5 mm
封装 -
触点材质 Brass
工作温度 -20℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ELV标准 Compliant
