78116 SL005

78116 SL005图片1
78116 SL005图片2
78116 SL005图片3
78116 SL005图片4
78116 SL005图片5
78116 SL005图片6
78116 SL005概述

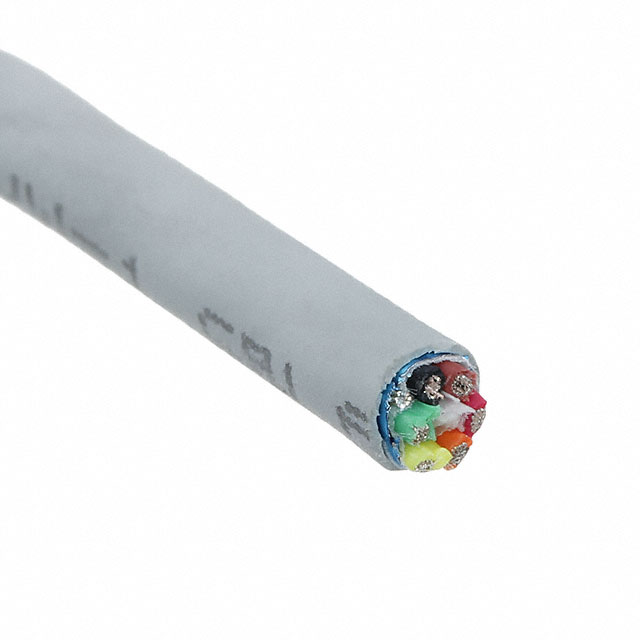

Ecogen Ecocable Mini Shielded Cable, 6Conductor, 26AWG, 100Ft, 300V

EcoGen EcoCable Mini recyclable, halogen-free cable has been developed by to meet customers’ needs for smaller, lighter 300V cable. It uses mPPE insulation and jacketing to provide application advantages in a cable that is 32% smaller and 44% lighter than standard PVC cable, combining better performance and minimum environmental impact. The reductions in size and weight make routing and installation even easier, saving more time during production and maintenance.

78116 SL005中文资料参数规格
技术参数

线规 26 AWG

额定电压DC 300 V

芯数 6

额定电压 300 V

外形尺寸

长度 30.5 m

物理参数

颜色 Slate

工作温度 -40℃ ~ 80℃

导体材质 Tinned Copper

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Industrial, Medical, Audio, Communications & Networking, Consumer Electronics, Lighting,

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买78116 SL005
型号: 78116 SL005
制造商: Alpha Wire
描述:Ecogen Ecocable Mini Shielded Cable, 6Conductor, 26AWG, 100Ft, 300V
