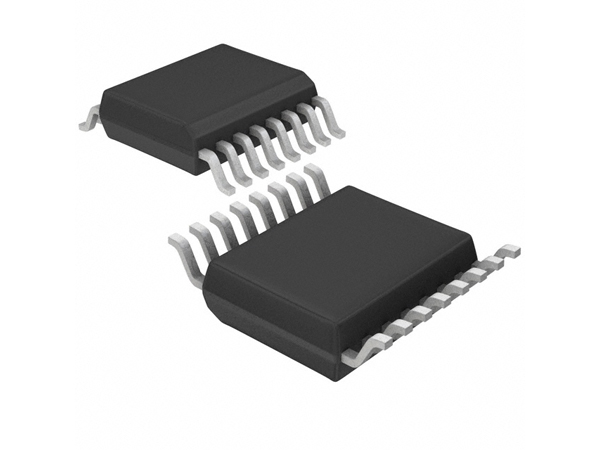

FAIRCHILD SEMICONDUCTOR 74VHC164MTCX 移位寄存器, HC系列, 串行至并行, 1元件, TSSOP, 14 引脚, 2 V, 5.5 V
The is a 8-bit serial-in parallel-out Shift Register fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to equivalent Bipolar Schottky TTL while maintaining the CMOS low power dissipation. Serial data is entered through a 2-input AND gate synchronous with the low-to-high transition of the clock. The device features an asynchronous Master Reset which clears the register, setting all outputs low independent of the clock. An input protection circuit insures that 0 to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 to 3V systems and two supply systems such as battery backup. This circuit prevents device destruction due to mismatched supply and input voltages.
电源电压DC 2.00V min
电路数 8
针脚数 14
位数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
长度 10.2 mm
宽度 5.3 mm
高度 0.9 mm
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
