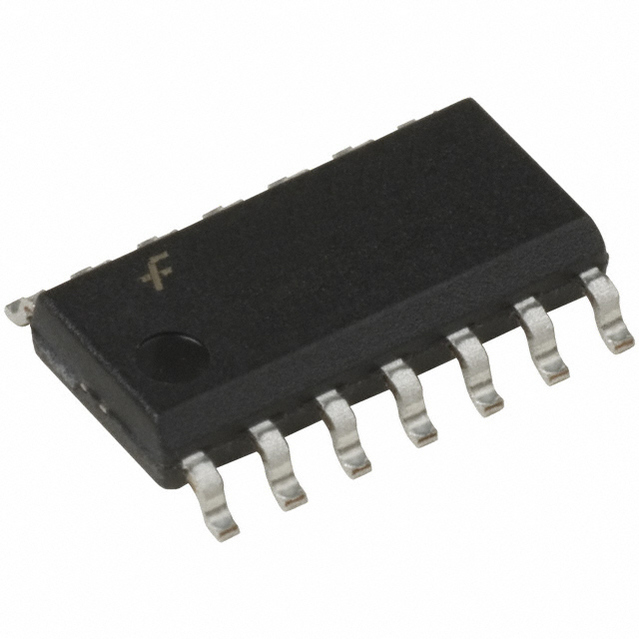

74VHC132M

FAIRCHILD SEMICONDUCTOR  74VHC132M  与非门, VHC系列, 施密特触发, 4门, 2输入, 8 mA, 2V至5.5V, SOIC-14

The is an advanced high speed CMOS quad 2-input NAND Schmitt-trigger Gate fabricated with silicon gate CMOS technology. It achieves the high-speed operation similar to bipolar schottky TTL while maintaining the CMOS low power dissipation. Pin configuration and function are the same as the VHC00 but the inputs have hysteresis between the positive-going and negative-going input thresholds, which are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals. Thus greater noise margin than conventional gates is provided. An input protection circuit ensures that 0 to 7V can be applied to the input pins without regard to the supply voltage. This device can be used to interface 5 to 3V systems and two supply systems such as battery backup. This circuit prevents device destruction due to mismatched supply and input voltages.

.

3.9ns Propagation delay tPD

.

Power down protection is provided on all inputs

.

0.8V Maximum low noise VOLP

.

2µA Maximum low power dissipation ICC

.

Pin and function compatible with 74HC132
