低电压双向收发器,具有5V容限输入和输出 Low Voltage Bidirectional Transceiver with 5V Tolerant Inputs and Outputs
The LCX245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage 2.5V and 3.3V V
CC
applications with capability of interfacing to a 5V signal environment. The T/R# input determines the direction of data flow through the device. The OE# input disables both the A and B ports by placing them in a high impedance state.
The LCX245 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Product Highlights
5V tolerant inputs and outputs
2.3V to 3.6V V
CC
specifications provided
7.0 ns t
PD
max V
CC
= 3.3V, 10 µA I
CC
max
Power down high impedance inputs and outputs
Supports live insertion/withdrawal Note 1
±24 mA output drive V
CC
= 3.0V
Implements patented noise/EMI reduction circuitry
Latch-up performance exceeds 500 mA
ESD performance:
Human body model > 2000V
Machine model > 200V
Leadless DQFN Pb-Free package
电源电压DC 3.30 V
位数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20

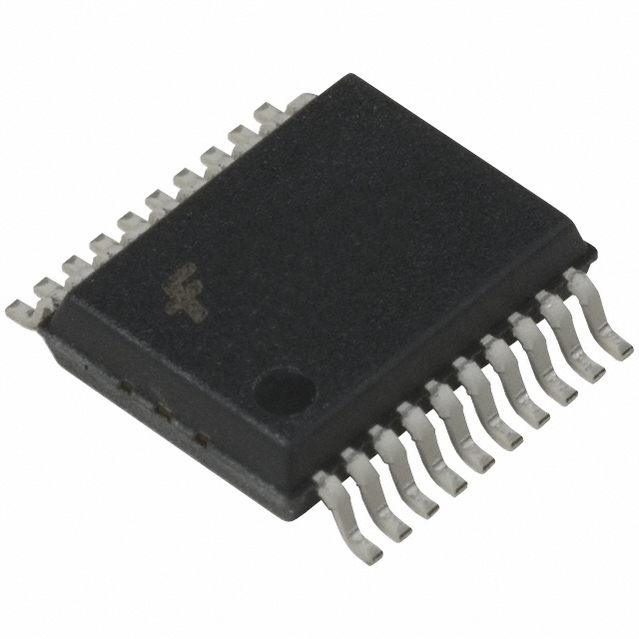

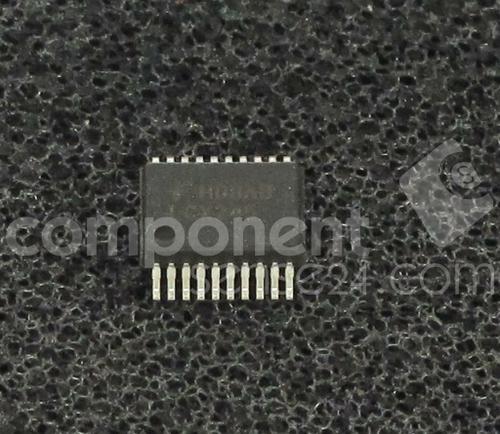

封装 SSOP-20
高度 1.75 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Obsolete
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
