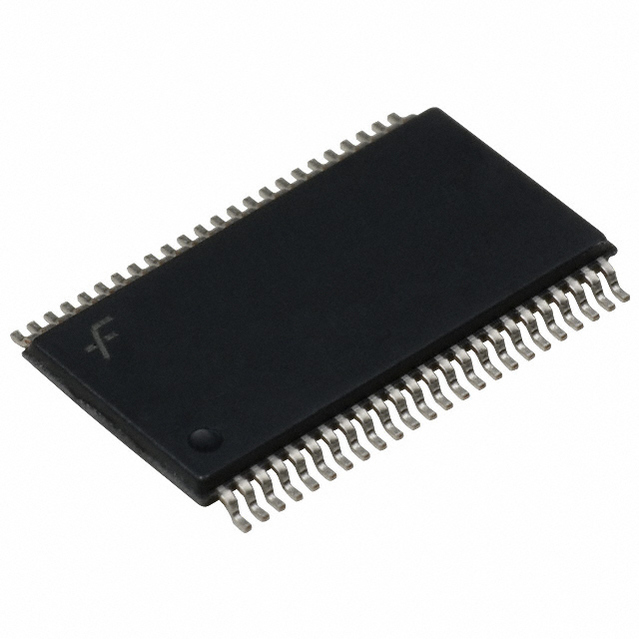

74ALVC 系列 3.6 V 低电压 16 位 双向 收发器 - TSSOP-48
General Description
The ALVC16245 contains sixteen non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each byte has separate 3-STATE control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine the direction of data flow through the device. The OE inputs disable both the A and B ports by placing them in a high impedance state.
Features
■ 1.65V–3.6V VCC supply operation
■ 3.6V tolerant inputs and outputs
■ tPD
3.0 ns max for 3.0V to 3.6V VCC
3.5 ns max for 2.3V to 2.7V VCC
6.0 ns max for 1.65V to 1.95V VCC
■ Power-down high impedance inputs and outputs
■ Supports live insertion/withdrawal Note 1
■ Uses patented noise/EMI reduction circuitry
■ Latchup conforms to JEDEC JED78
■ ESD performance:
Human body model ! 2000V
Machine model !200V
■ Also packaged in plastic Fine-Pitch Ball Grid Array FBGA
