16位总线收发器具有三态输出 16-BIT BUS TRANSCEIVERS WITH 3-STATE OUTPUTS
Description
The SN74AHCT16245 device is a 16-bit dual-octal noninverting 3-state transceiver designed for synchronous two-way communication between data buses.
Features
• Members of Texas Instruments’ Widebus™ Family
• Inputs are TTL-Voltage Compatible
• Distributed VCC and GND Pins Minimize High-Speed Switching Noise
• Flow-Through Architecture Optimizes PCB Layout
• Latch-Up Performance Exceeds 250 mA Per JESD 17
Applications
• Telecom and Wireless Infrastructures
• Electronic Points of Sale
• Printers and Other Peripherals
• Motor Drives
• Health and Fitness
电源电压DC 4.50V ~ 5.50V
输出接口数 16
电路数 2
通道数 16
位数 16
传送延迟时间 9.50 ns
电压波节 5.00 V
输出电流驱动 -1.00 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount

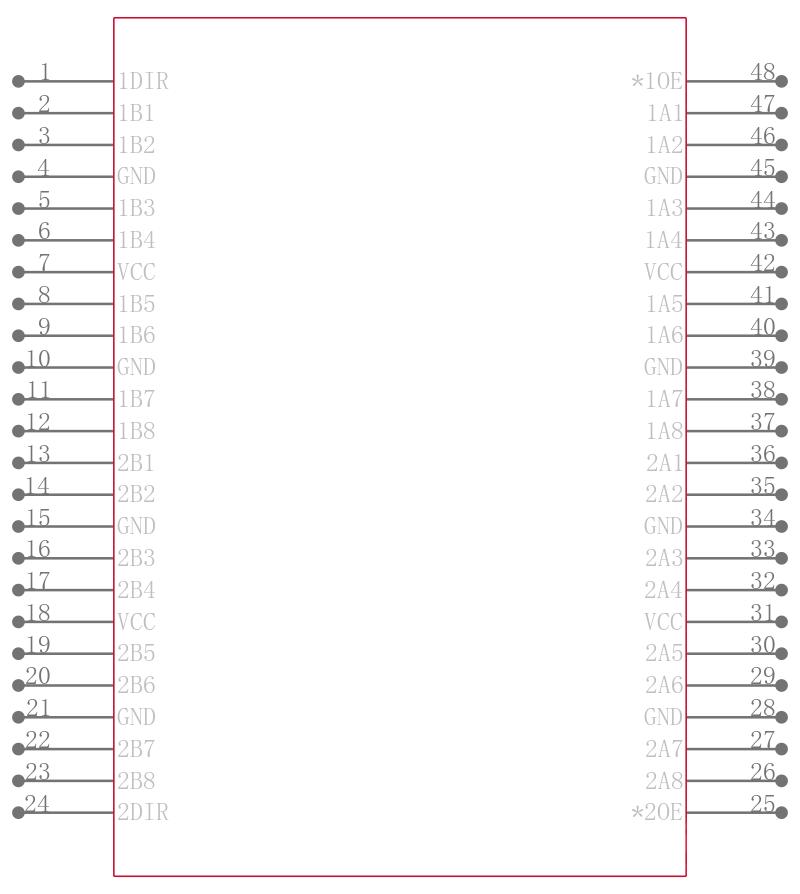

引脚数 48
封装 TFSOP-48
长度 9.7 mm
宽度 4.4 mm
高度 1.05 mm
封装 TFSOP-48
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
