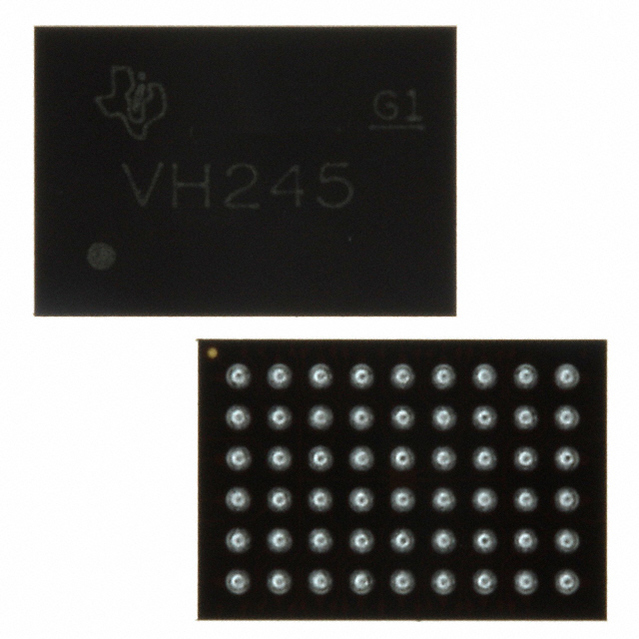

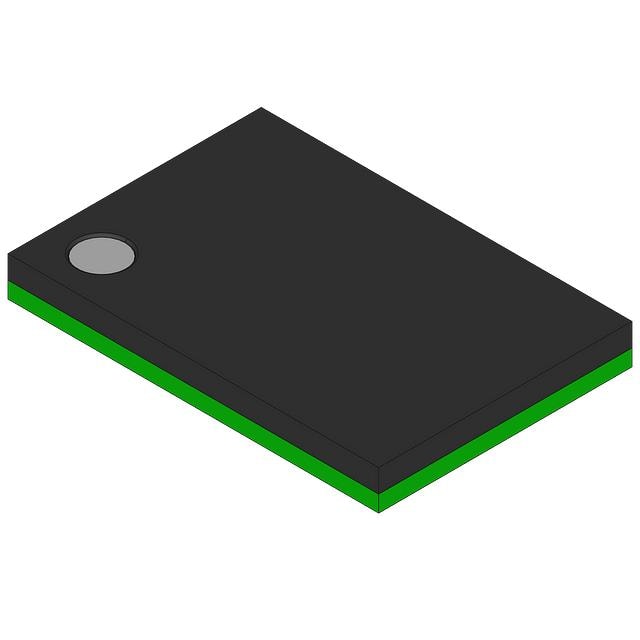

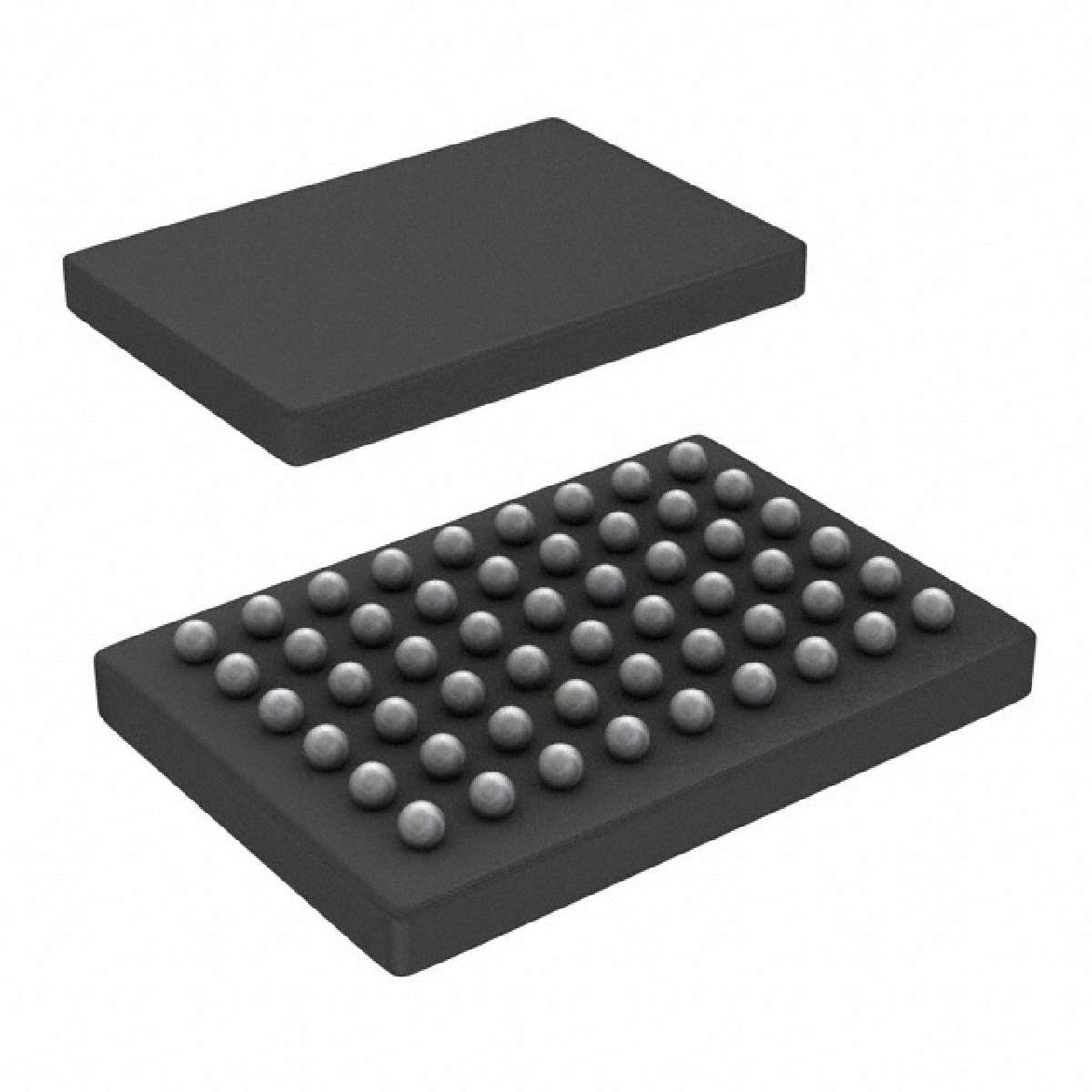

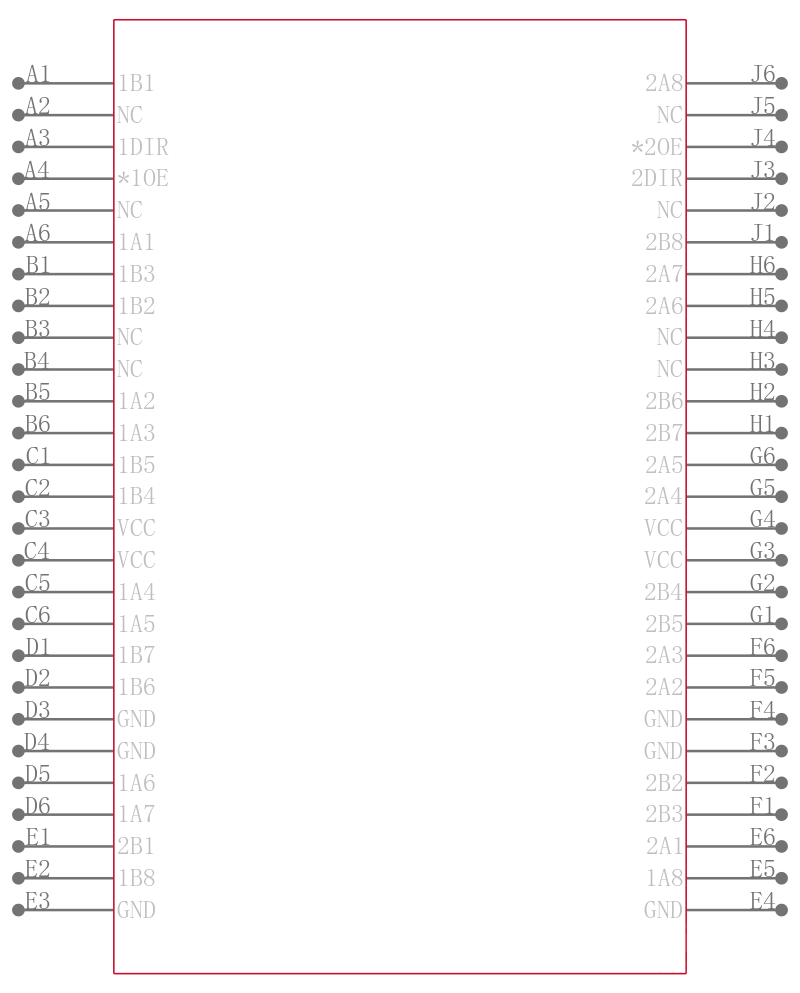

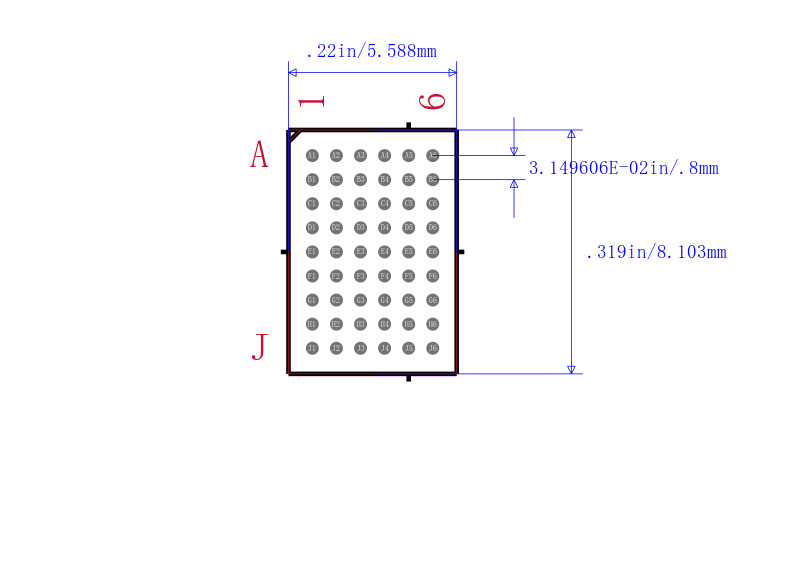

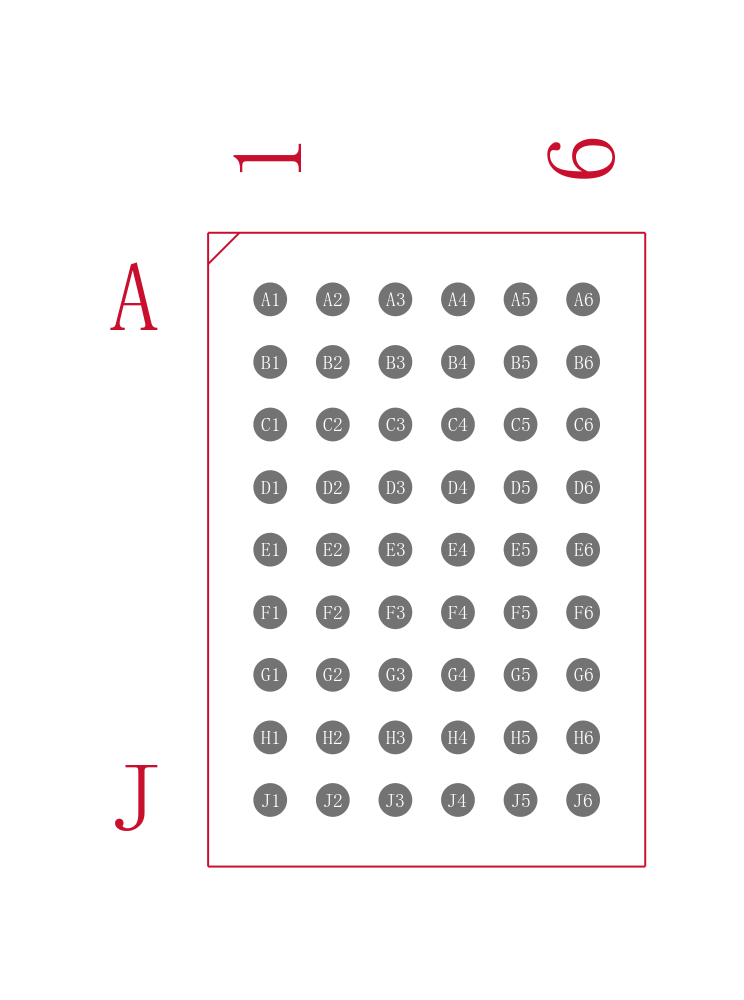

74ALVCH16245ZRDR

具有三态输出的16位总线收发器 16-BIT BUS TRANSCEIVER WITH 3-STATE OUTPUTS

Description

This 16-bit dual-octal noninverting bus transceiver is designed for 1.65-V to 3.6-V VCC operation.

The SN74ALVCH16245 device is designed for asynchronous communication between two data buses. The logic levels of the direction-control DIR input and the output-enable OE input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic high or low level applied to prevent excess ICC and ICCZ.

Features

• Member of the Texas Instruments Widebus™ Family

• Operates From 1.65 V to 3.6 V

• Max tpd of 3 ns at 3.3 V

• ±24-mA Output Drive at 3.3 V

• Bus Hold on Data Inputs Eliminates the Need for External Pullup or Pulldown Resistors

• Latch-Up Performance Exceeds 250 mA Per JESD 17

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

Applications

• Cable Modem Termination Systems

• Servers

• LED Displays

• Network Switches

• Telecom Infrastructure

• Motor Drivers

• I/O Expanders
