八路双向收发器与3态输出 Octal Bi-Directional Transceiver with 3-STATE Outputs
General Description
The ABT245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus-oriented applications. Current sinking capability is 64 mA on both the A and B ports.
Features
■Bidirectional non-inverting buffers
■A and B output sink capability of 64 mA, source capability of 32 mA
■Guaranteed output skew
■Guaranteed multiple output switching specifications
■Output switching specified for both 50 pF and 250 pF loads
■Guaranteed simultaneous switching, noise level and dynamic threshold performance
■Guaranteed latchup protection
■High impedance glitch-free bus loading during entire power up and power down cycle
■Non-destructive hot insertion capability
■Disable time is less than enable time to avoid bus contention
电源电压DC 5.00 V
电路数 8
通道数 8
位数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 20

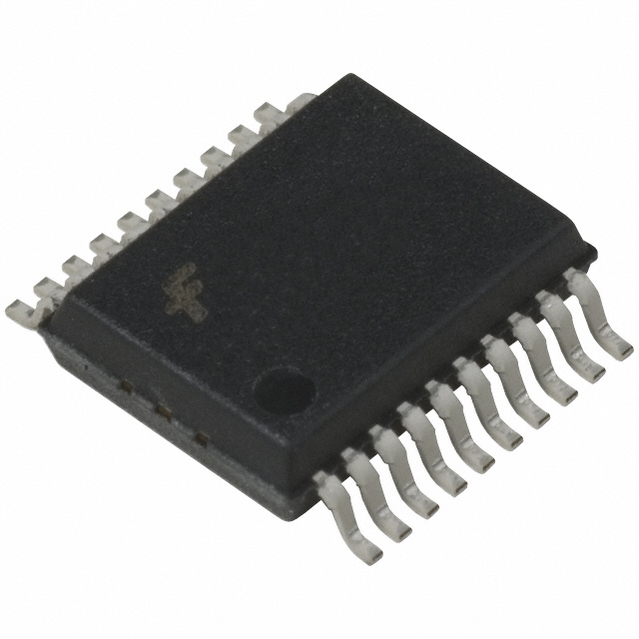

封装 SSOP-20
高度 1.75 mm
封装 SSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Rail
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
