709176001532006

AVX INTERCONNECT  709176001532006  金属触芯, IDC, 1路, 24AWG

24 AWG SSL 触点，IDC 焊接 表面贴装型

得捷:
CONN SSL IDC CONTACT 24AWG SLDR

贸泽:
Headers & Wire Housings 1 WAY IDC CONTACT 24AWG STRANDED

e络盟:
# AVX INTERCONNECT  709176001532006  金属触芯, IDC, 1路, 24AWG

艾睿:

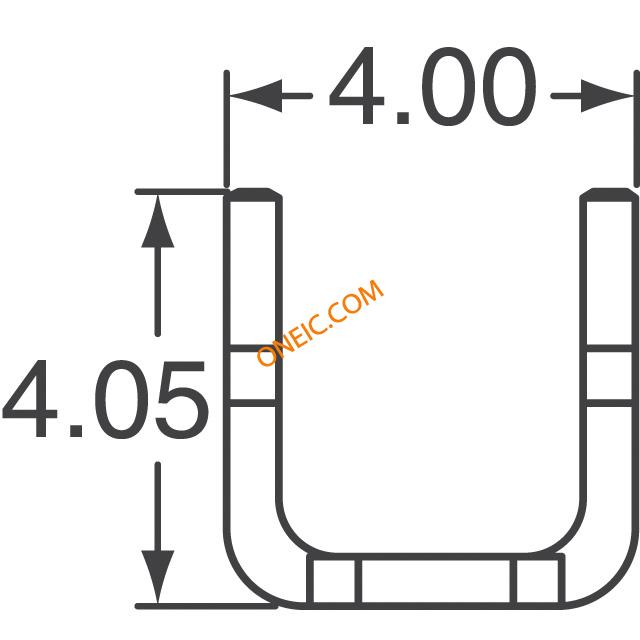

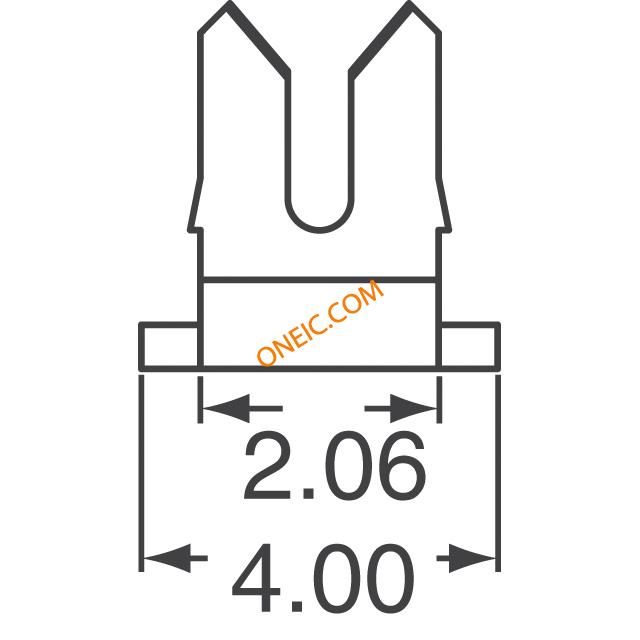

This 709176001532006 connector contact from AVX is will form a perfect mechanical connection, never loose data again. It has a straight body orientation. This device has a maximum current rating of 10 A. This has a Connector Headers and PCB Receptacles connector. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It uses the solder termination method. This connector contact has an operating temperature range of -40 °C to 125 °C. Its wire is 24 AWG. This product is 4 mm long, 4.05 mm tall and 4 mm deep.

TME:
Punch down block; Connector: IDC transition; 9176-500; ways:1

Newark:
# AVX INTERCONNECT  709176001532006  Contact, 9176-500 Series, 24 AWG Stranded Wire, Socket, Phosphor Bronze, Tin Plated Contacts, 10 A
