7-1393644-4

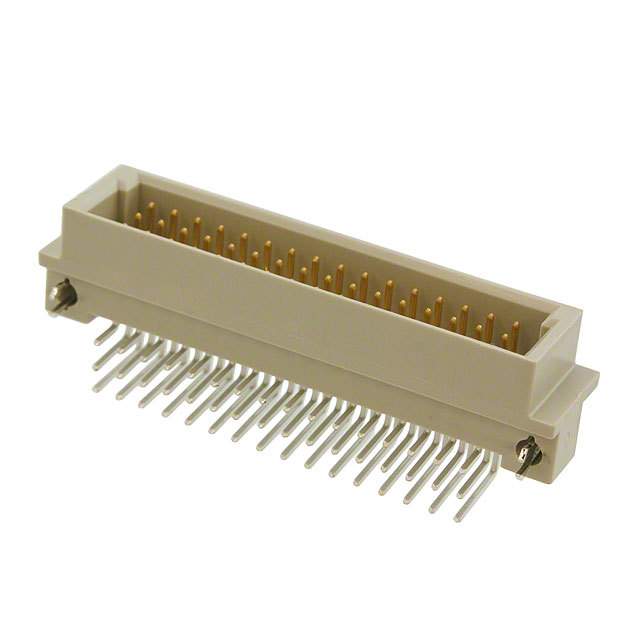

Conn DIN 41612M 48POS 2.54mm Solder RA Thru-Hole

48 针位 DIN 插头，公引脚 金或金-钯 通孔，直角

得捷:
CONN DIN PLUG 48POS PCB RA GOLD

立创商城:
7-1393644-4

艾睿:
Communicate between multiple devices by linking them to this din 41612 7-1393644-4 backplane connector from TE Connectivity. This M connector&s;s 48 contacts that are made out of copper alloy. It has a male type gender. This is a 3-row connector. It has a right angle body orientation. It has a maximum voltage rating of 250 VAC. Its pitch is 2.54 mm. This device has a maximum current rating of 1.5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This product is 53.36 mm long, 11.1 mm tall and 12.7 mm deep. It uses the solder termination method. 7-1393644-4 is housed in gray polyester. This backplane connector has an operating temperature of -55 to 125 °C.

安富利:
Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole

Chip1Stop:
Conn DIN 41612 M 48 POS 2.54mm Solder RA Thru-Hole

Verical:
Conn DIN 41612 PL 48 POS 2.54mm Solder RA Thru-Hole Tray

MASTER:
pin assembly eurocard

Powell:
Eurocard Type C

Online Components:
V42254B1200C410=PC612 MESSERLE

Electro Sonic:
V42254B1200C410=PC612 MESSERLE
