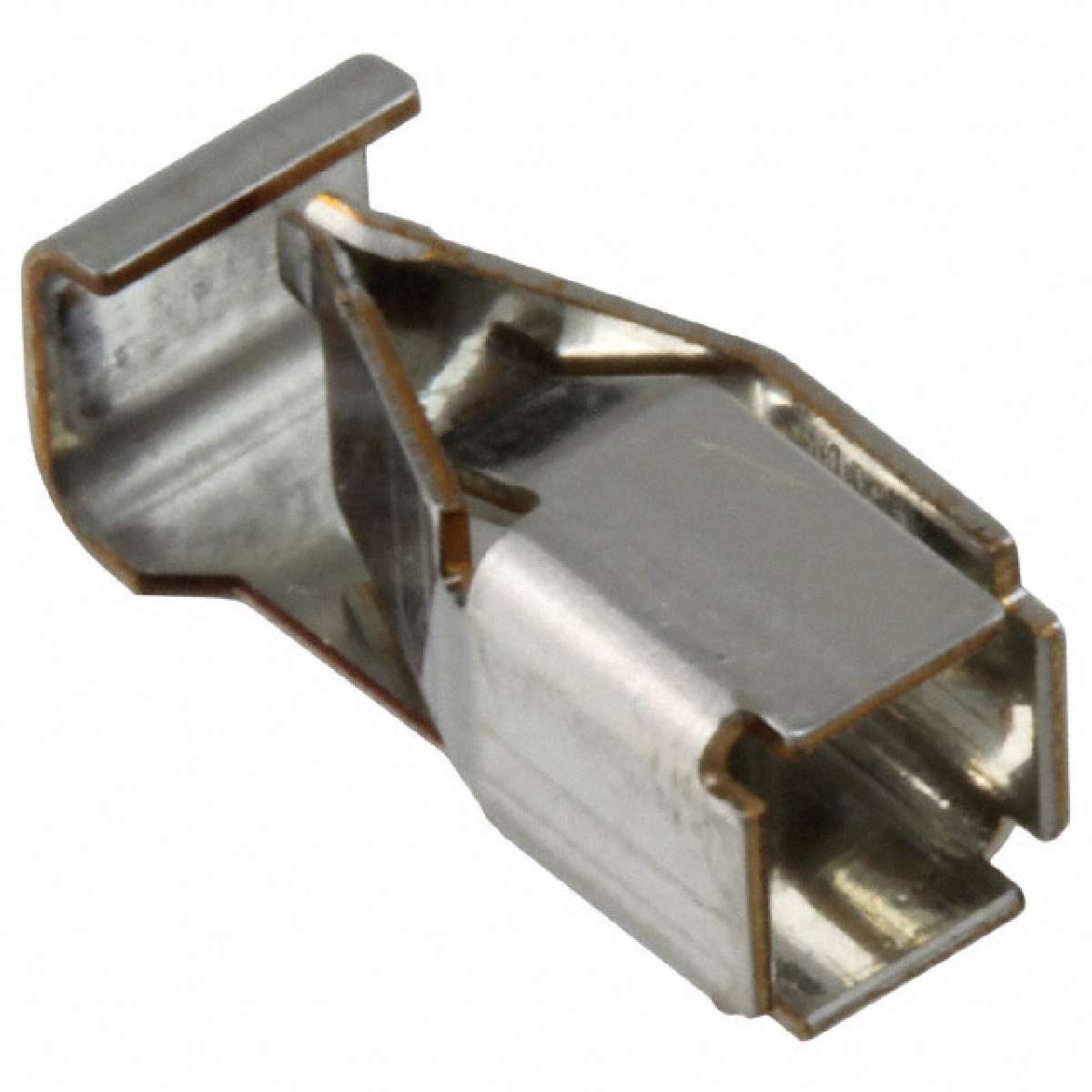

AVX INTERCONNECT 709296001003006 金属触芯, 母, SMT, POKE-HOME连接器
The is a 1-way 3mm Wire-to-board Socket Contact made of phosphor bronze with tin-plated finish. The unique contact design of 70-9296 series integrates several key features within the stamping to facilitate SMT pickup, wire guidance, high force retention and easy wire removal. This family of 3mm closed box contacts accept either solid or stranded wires ranging from 28 to 12AWG with current ratings up to 20A. Once the contacts are soldered onto the PCB, wires need to be stripped to length twisted if stranded and inserted into the open end of the box contact. As the wires are pushed in, upper and lower tines guide the wire down the center of the contact deflecting the right and left contact tines until the wire reaches the wire stop. Wires can be removed by twisting the wire out and or using a small blade removal tool to help release some of the contact force.
极性 Female
线规 18AWG ~ 26AWG
触点电镀 Tin
额定电流 12 A
针脚数 1
拔插次数 5
额定电流Max 12 A
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 300 V
安装方式 Surface Mount
高度 3 mm
外壳颜色 Silver
触点材质 Phosphor Bronze
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
