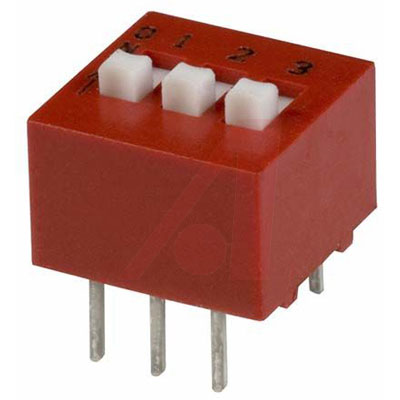

78 系列 突起式 滑动 单刀单掷 3 位置 通孔 DIP 开关
DIP slide switches are easy to install and more convenient to use than pin headers and jumper blocks.
得捷:
SWITCH SLIDE DIP SPST 150MA 30V
贸泽:
DIP 开关/ SIP 开关 DIP Switch SPST Raised Slide 3 Pos
艾睿:
Switch DIP OFF ON SPST 3 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Allied Electronics:
Switch; DIP; 0.380 in. L x 0.380 in. W x 0.245 in. H; 3; SPST; Thru-Hole
安富利:
Switch DIP OFF ON SPST 3 Raised Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP OFF ON SPST 3 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/Switch 2.54mm Thru-Hole Tube
Verical:
Switch DIP OFF ON SPST 3 Raised Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube
Newark:
# GRAYHILL 78B03T DIP SWITCH
MASTER:
Switch DIP OFF ON SPST 3 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Online Components:
Switch DIP OFF ON SPST 3 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Electro Sonic:
Switch DIP OFF ON SPST 3 Raised Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
额定电压DC 30 V
接触器类型 Standard
额定电流 150 mA
绝缘电阻 5000 MΩ
方向 Vertical
触点类型 SPST
针脚数 3
接触电阻 30 mΩ
额定电流Max 0.15A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 30 VDC
额定电压DC Max 30 V
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm
长度 9.65 mm
宽度 9.65 mm
高度 8 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
