7914J-1-000

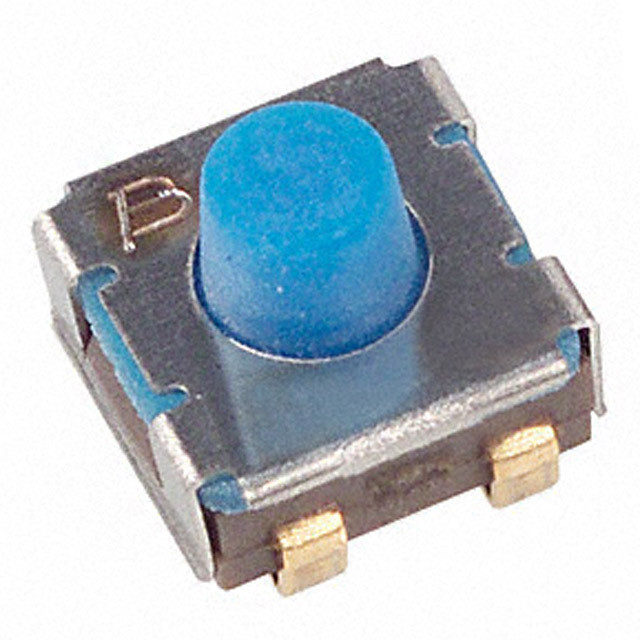

BOURNS  7914J-1-000  轻触开关, 不发光, 300 gf, 16 V, 100 mA, 焊接, 7914系列

* Surface mount 4mm size

.

Positive tactile operation

.

Sealed construction

.

Compatible with all surface mount soldering processes

欧时:
SWITCH - 4MM SEALED KEY

得捷:
SWITCH TACTILE SPST-NO 0.1A 16V

立创商城:
7914J-1-000

e络盟:
轻触开关, 7914 系列, 顶部操作, SMD, 圆形按钮, 300 gf, 16VDC时, 100mA

艾睿:

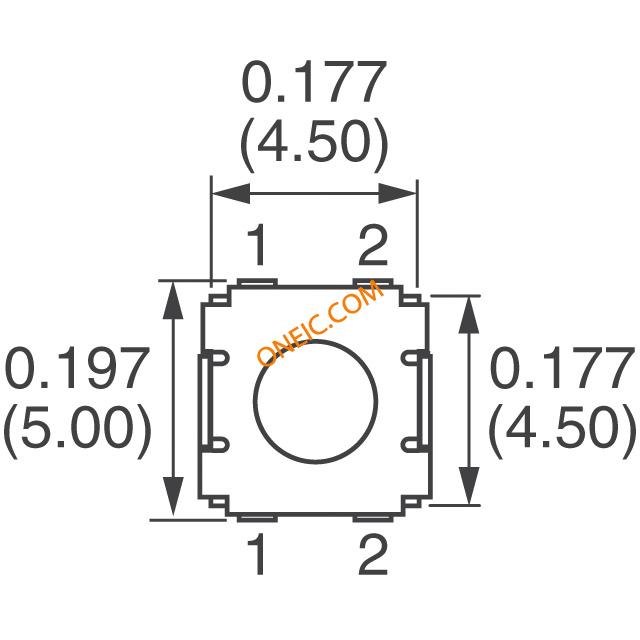

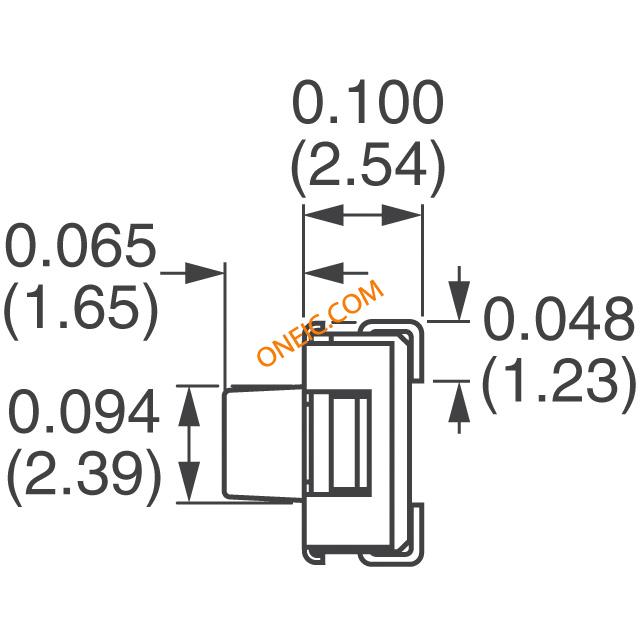

The key switch 7914J-1-000 tactile switch from Bourns lets you quickly turn on your system by use of pressure. This device has a maximum current rating of 0.1. It has a SPST configuration. This tactile switch has an operating temperature range of -55 °C to 125 °C. The 7914J-1-000 tactile switch has a j-hook termination style. This product is 5 mm long, 4.19 mm tall and 5 mm deep. The maximum AC voltage rating is 16 VAC and the maximum DC voltage rating is 16 VDC. This round button actuator is 1.65 mm long.

安富利:

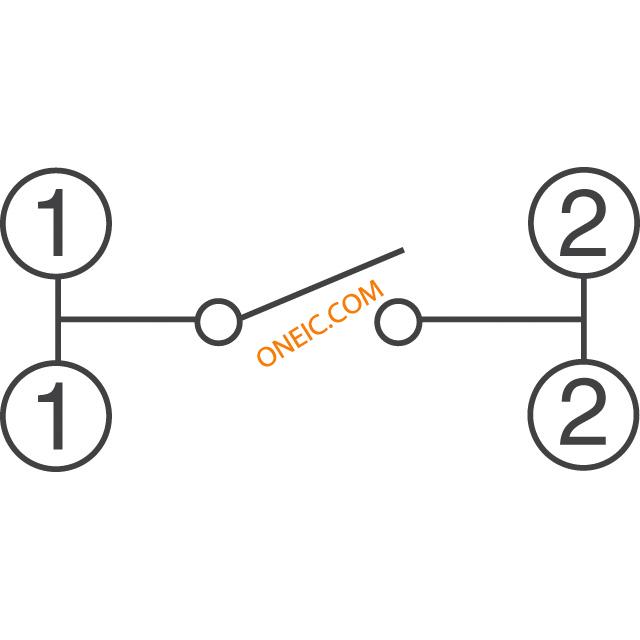

Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycle 2.94N SMD Tube

Chip1Stop:
Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube

Verical:
Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube

MASTER:
Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube

Online Components:
Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube

Electro Sonic:
Switch Tactile N.O. SPST Round Button J-Hook 0.1A 16VAC 16VDC 100000Cycles 2.94N SMD Tube

Win Source:
SWITCH TACTILE SPST-NO 0.1A 16V
