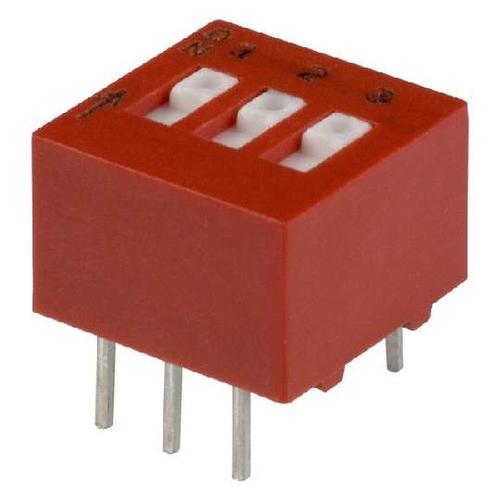

DIP 开关/ SIP 开关 DIP Switch, SPST, recessed slide, 3 position, tape seal, RoHS Compliant
DIP SPST 3 位置 通孔 滑动式（标准） 触动器 150mA 30VDC
得捷:
SWITCH SLIDE DIP SPST 150MA 30V
贸泽:
DIP 开关/ SIP 开关 DIP Switch, SPST, recessed slide, 3 position, tape seal, RoHS Compliant
艾睿:
Switch DIP OFF ON SPST 3 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
安富利:
Switch DIP OFF ON SPST 3 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube
Chip1Stop:
Switch DIP OFF ON SPST 3 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Verical:
Switch DIP OFF ON SPST 3 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
Newark:
# GRAYHILL 78RB03ST DIP Switch, SPST, recessed slide, 3 position, tape seal, RoHS Compliant
额定电压DC 30 V
接触器类型 Standard
方向 Vertical
触点类型 SPST
针脚数 3
额定电流Max 0.15 A
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 30 VDC
额定电压DC Max 30 V
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm
长度 9.65 mm
宽度 9.65 mm
高度 6.73 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
