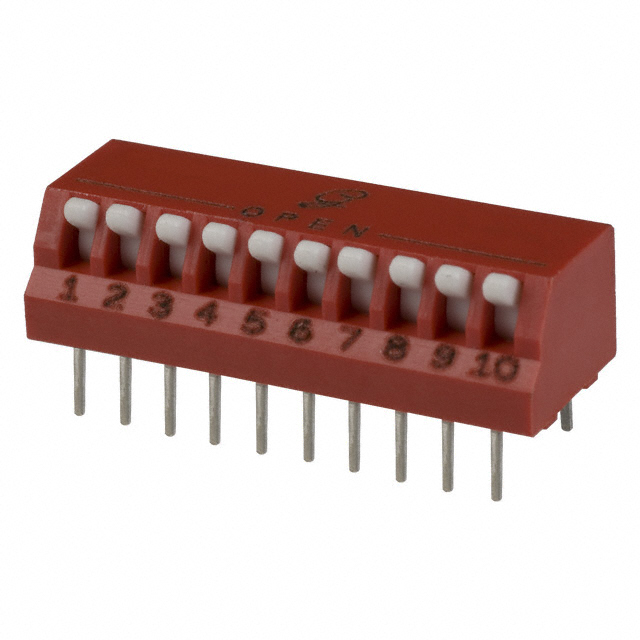

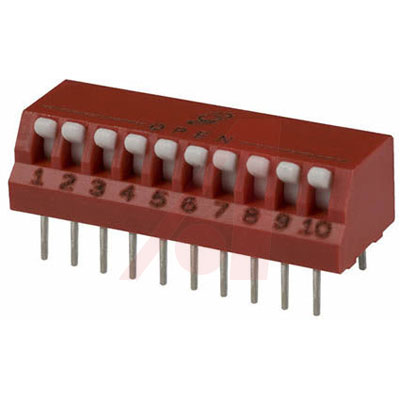

76PSB10ST

76 系列 侧面触动 单刀单掷 10 位置 通孔 DIP 开关

DIP rocker switches are easy to install and more convenient to use than pin headers and jumper blocks.

得捷:
SWITCH PIANO DIP SPST 150MA 30V

贸泽:
DIP Switches / SIP Switches DIP Switch SPST up is off 10 Pos

艾睿:
This 76PSB10ST dual in-line package switch from Grayhill can be easily customized and designed to be used on a printed circuit board. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 76PSB10ST DIP switch has a PC pin termination style. This product&s;s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC. This product is 27.4 mm long, 7.65 mm tall and 9.65 mm deep.

Allied Electronics:
Switch; DIP; SPST; 10pos; 150mA 30VDC; PCB mnt; 1.08in. L x 0.38in. W

Jameco:
DIP Switch 10 Position On Off Single Polet 0.15 Amp @ 30 Volt Piano

安富利:
Switch DIP ON OFF SPST 10 Piano 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP ON OFF SPST 10 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP ON OFF SPST 10 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Newark:
DIP Switch SPST side actuated 10 position tape

MASTER:
Switch DIP ON OFF SPST 10 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP ON OFF SPST 10 Piano 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
