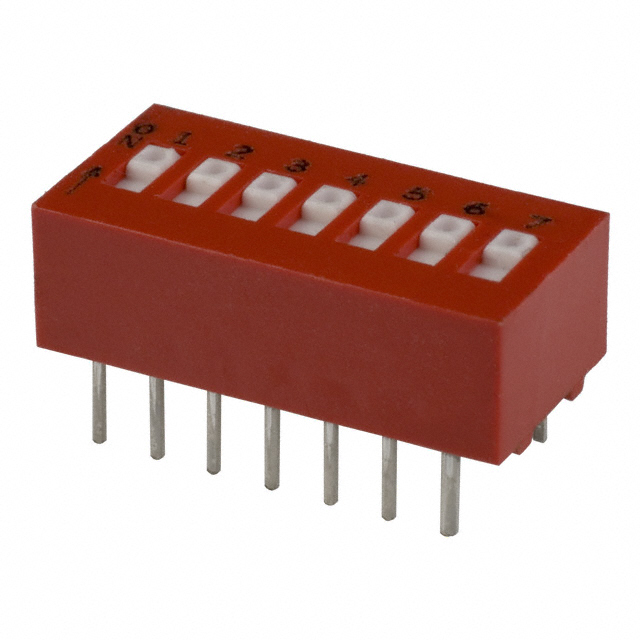

78RB07T

Switch DIP OFF ON SPST 7 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/Switch 2.54mm Thru-Hole Tube

is manufactured by and is categorized in the DIP Switches category. 78RB07T is described as SWITCH SLIDE DIP SPST 150MA 30V. Perfect Parts is a supplier of Switches and other Electromechanicals.

得捷:
SWITCH SLIDE DIP SPST 150MA 30V

艾睿:
Add current flow control to your printed circuit simply through the use of Grayhill&s;s 78RB07T dual in-line package switch. It has a SPST configuration. This device has a maximum current rating of 0.15 A @ 30VDC. This DIP switch has a minimum operating temperature of -40 °C and a maximum of 85 °C. The 78RB07T DIP switch has a PC pin termination style. The maximum DC voltage rating is 30 VDC. This product&s;s terminal pitch is 2.54 mm. This product is 19.8 mm long, 6.73 mm tall and 9.65 mm deep.

安富利:
Switch DIP OFF ON SPST 7 Recessed Slide 0.15A 30VDC PC Pins 2000Cycle/SwitchCycle 2.54mm Thru-Hole Tube

Chip1Stop:
Switch DIP OFF ON SPST 7 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Verical:
Switch DIP OFF ON SPST 7 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles 2.54mm Thru-Hole Tube

Newark:
# GRAYHILL  78RB07T  DIP Switch, SPST, recessed slide, 7 position, RoHS Compliant

MASTER:
Switch DIP OFF ON SPST 7 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube

Electro Sonic:
Switch DIP OFF ON SPST 7 Recessed Slide 0.15A 30VDC PC Pins 2000Cycles/SwitchCycles 2.54mm Thru-Hole Tube
