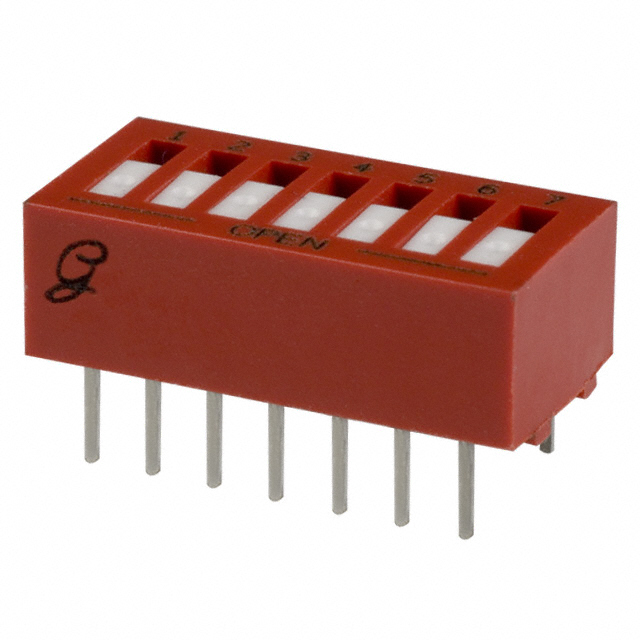

DIP Switches / SIP Switches DIP Switch, SPST, recessed rocker, 7Position, tape seal, RoHS Compliant
Use "s dual in-line package switch to easily control different electric paths on a printed circuit board. This device has a maximum current rating of 0.15 A @ 30VDC. It has a SPST configuration. This DIP switch has an operating temperature range of -40 °C to 85 °C. The 76RSB07ST DIP switch has a PC pin termination style. This product is 19.8 mm long, 7.42 mm tall and 9.65 mm deep. This product"s terminal pitch is 2.54 mm. The maximum DC voltage rating is 30 VDC.
额定电压DC 30 V
接触器类型 Rocker
方向 Vertical
触点类型 SPST
电路数 7
针脚数 7
额定电流Max 0.15A @30VDC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 30 VDC
额定电压DC Max 30 V
安装方式 Through Hole
封装 DIP
引脚间距 2.54 mm
长度 19.8 mm
宽度 9.65 mm
高度 7.42 mm
封装 DIP
引脚间距 2.54 mm
触点材质 Copper Alloy
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
ECCN代码 EAR99
