796692-8

固定接线端子 8 POS STACK 5.08mm

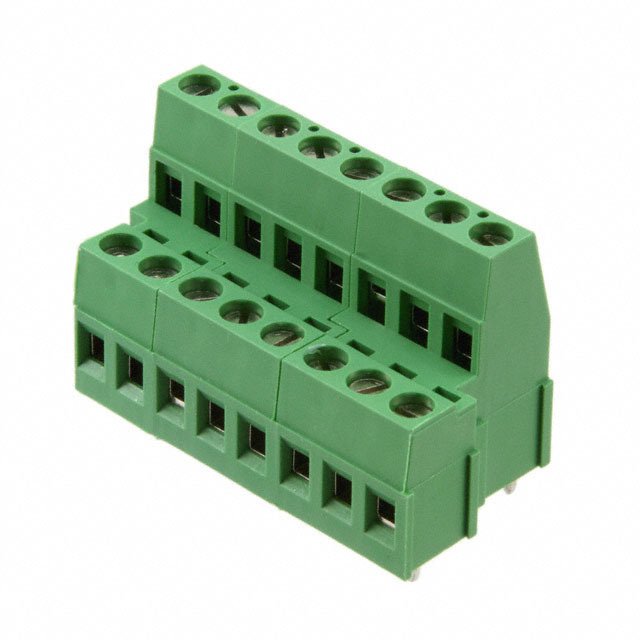

8 Position Wire to Board Terminal Block Horizontal with Board 0.200" 5.08mm Through Hole

得捷:
TERM BLK 8P SIDE ENT 5.08MM PCB

贸泽:
固定接线端子 8 POS STACK 5.08mm

艾睿:
TE Connectivity&s;s eurostyle block 796692-8 PCB terminal block will ensure strong connections between circuits. This F connector&s;s 16 contacts that are made out of brass and plated with tin/nickel. It has a straight body orientation. This is a 2-row connector. It has a female type gender. Its pitch is 5.08 mm. It has a maximum voltage rating of 300 VAC. This device has a maximum current rating of 17.5 A/contact. 796692-8 is housed in polyamide 6/6. This quick disconnect terminal has an operating temperature of -40 to 105 °C. It uses the solder termination method. This product is 43.68 mm long, 25.2 mm tall and 21.5 mm deep. Its wire is 12-30 AWG.

安富利:
Conn Terminal Block F 16 POS 5.08mm Solder ST Thru-Hole 17.5A/Contact

Powell:
Terminal Block Connectors
